NGD: 2011 Melody Maker Explorer that was begging to be modded...

Danelectro

V.I.P. Member
Joined
Sep 6, 2007
Messages
3,802
Reaction score
5,756
I grabbed this Melody Maker Explorer from the forum classifieds last month. I still find it hard to believe that I paid only $275 for this guitar including the soft case. I know its just an entry level Gibson, but this is a really wonderful guitar. The neck is very comfortable measuring .865" at the first fret which I would classify as a '59 profile. The fretwork is perfect. This is the time guitar I've owned with a baked maple fretboard, and although I initially thought it that going to baked maple was a step in the wrong direction, now that I've used it I really can't knock it. I don't like the light brown appearance of it, but more on that later.

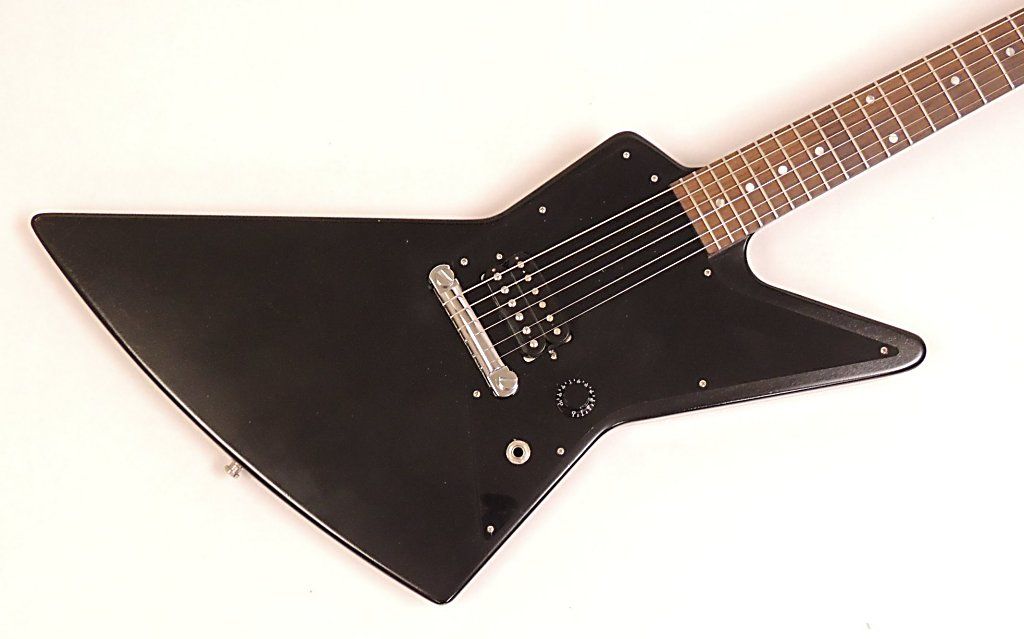

I received the guitar in stock condition which is a pretty basic feature-wise. It features a wraparound bridge, a Gibson humbucker of some sort, a volume control (no tone) and an output jack, all of which are mounted to the pickguard. The plastic is all 1-ply and pretty bland looking. The good news is aside from its boring appearance, its a really nice playing guitar.

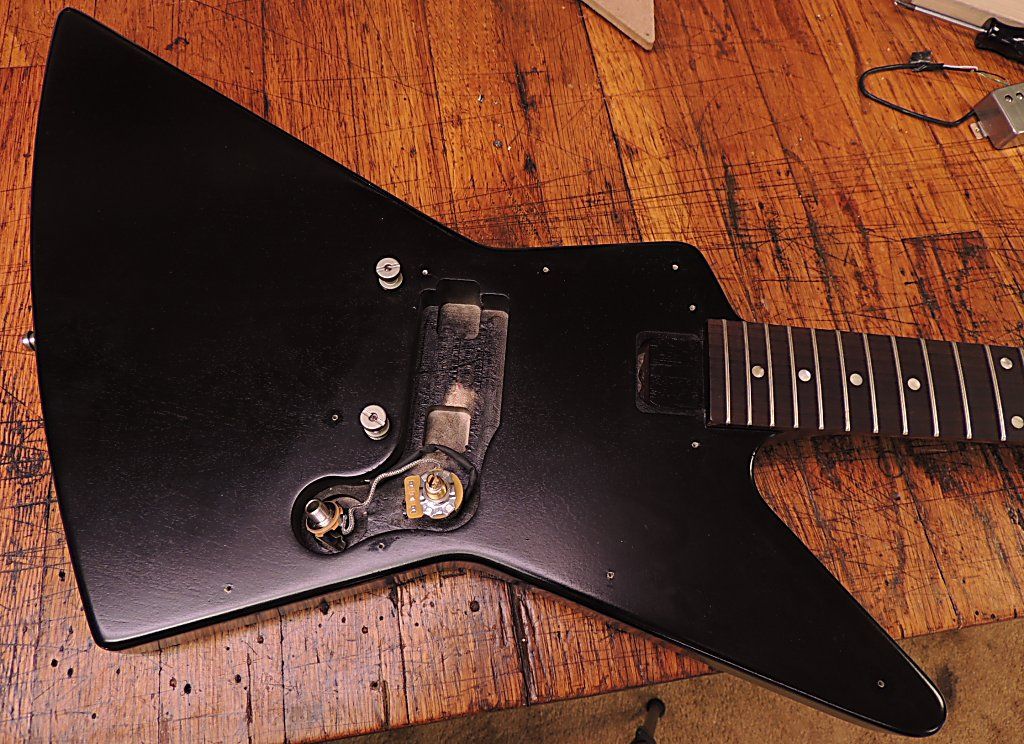

This guitar is just begging to be modded, and considering the price paid I figured its a no-brainer. Before I even received the guitar, my thoughts were to add a neck pickup. Once I had it in hand and took a look at the neck joint beneath the pickguard, I decided not to compromise its structure by routing it for the neck pickup.

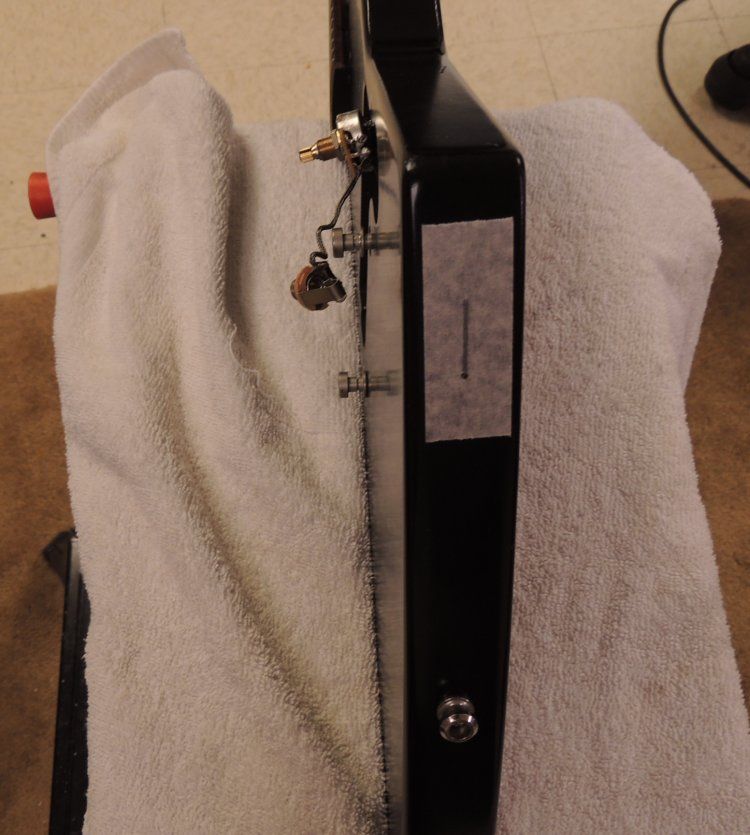

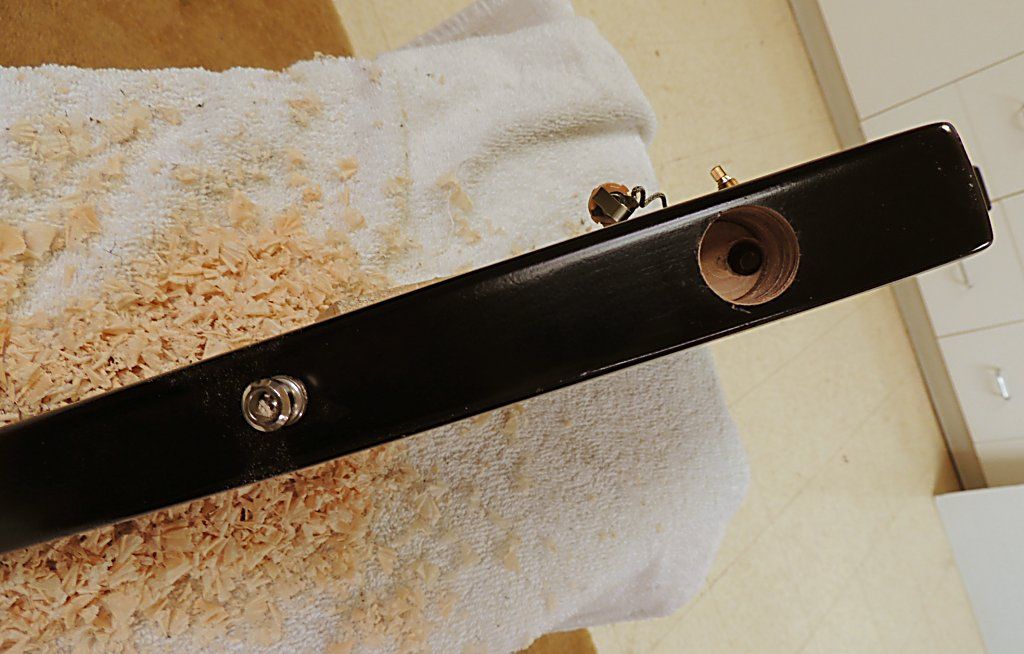

Another mod I had in mind was to move the output jack to the side of the body and add a tone control to the pickguard. I clamped the body into my WorkMate and bored a hole for the jack. The body is too thin for a standard jack plate, so I had to make a rectangular plate.

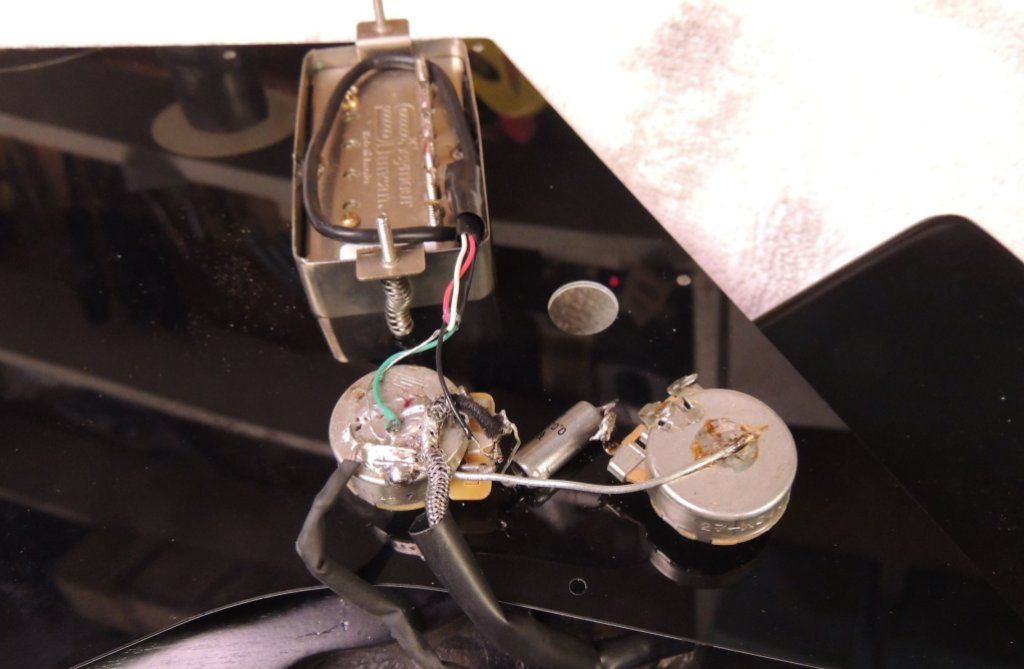

Tone control and PIO cap added, and I replaced the stock pickup with a Duncan JB that was sitting in the parts drawer:

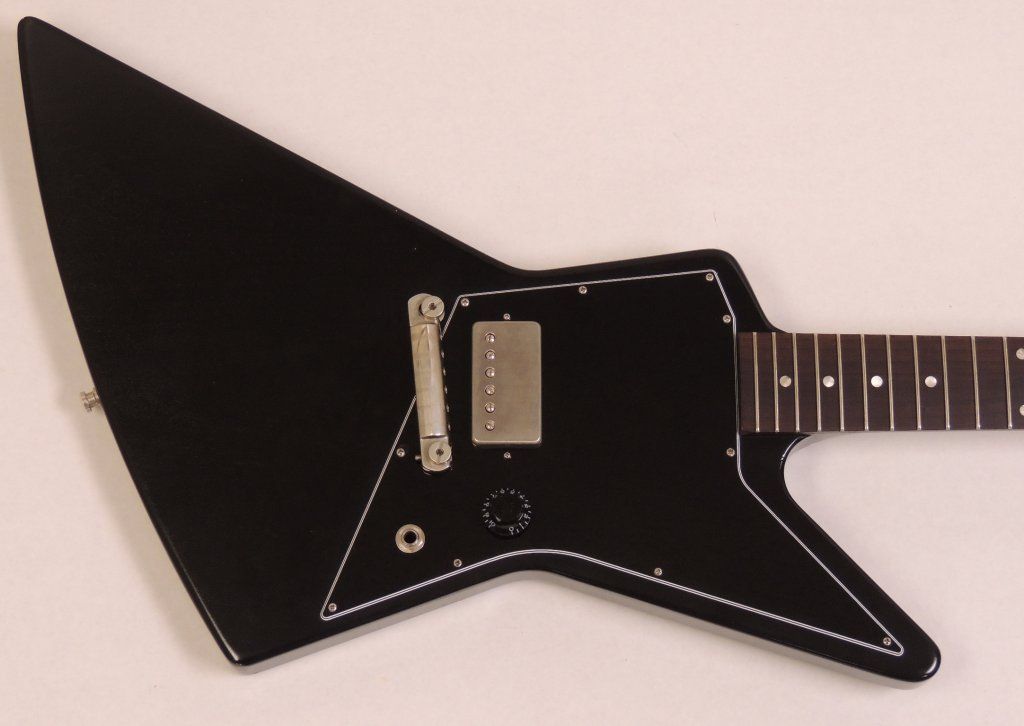

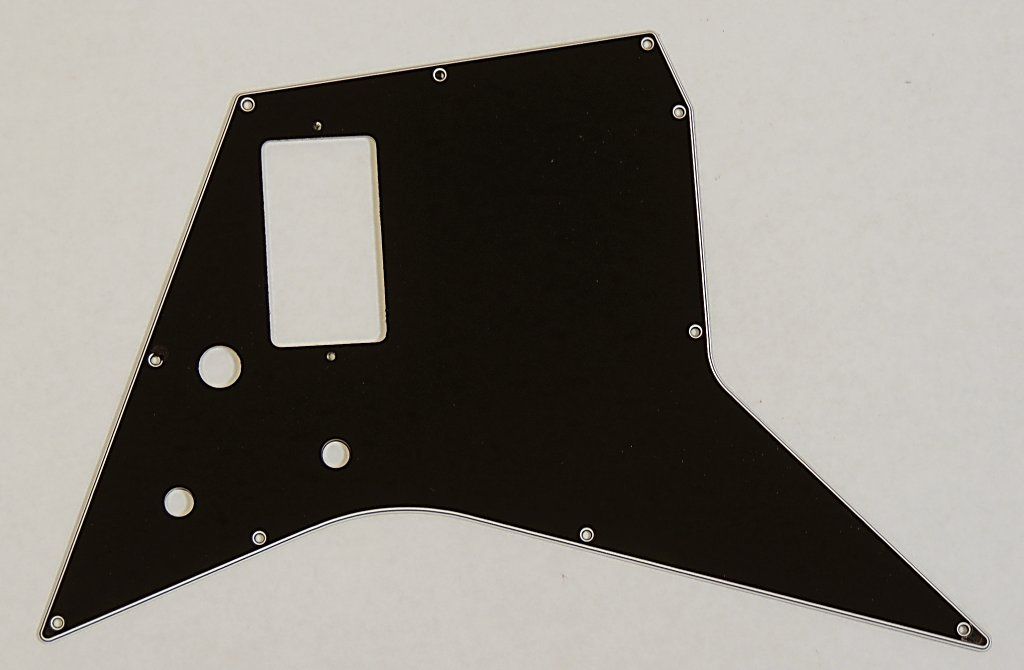

The stock 1-ply pickguard disappears into the body, so I made a 5-ply guard to make it stand out a bit more. I thought about changing the guards's profile, but that would mean filling holes and painting which I don't have time for right now so I kept the same profile. One thing that I don't like about this pickguard profile is that it goes under the bridge, so you have to remove the strings and bridge in order to tinker with the electronics.

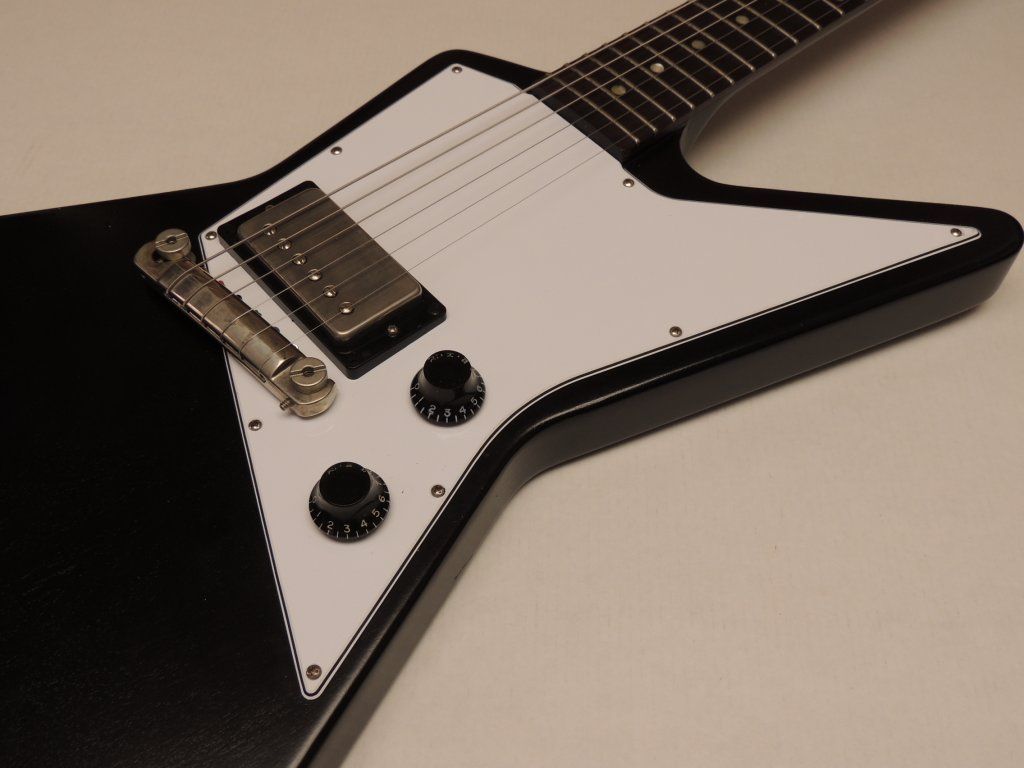

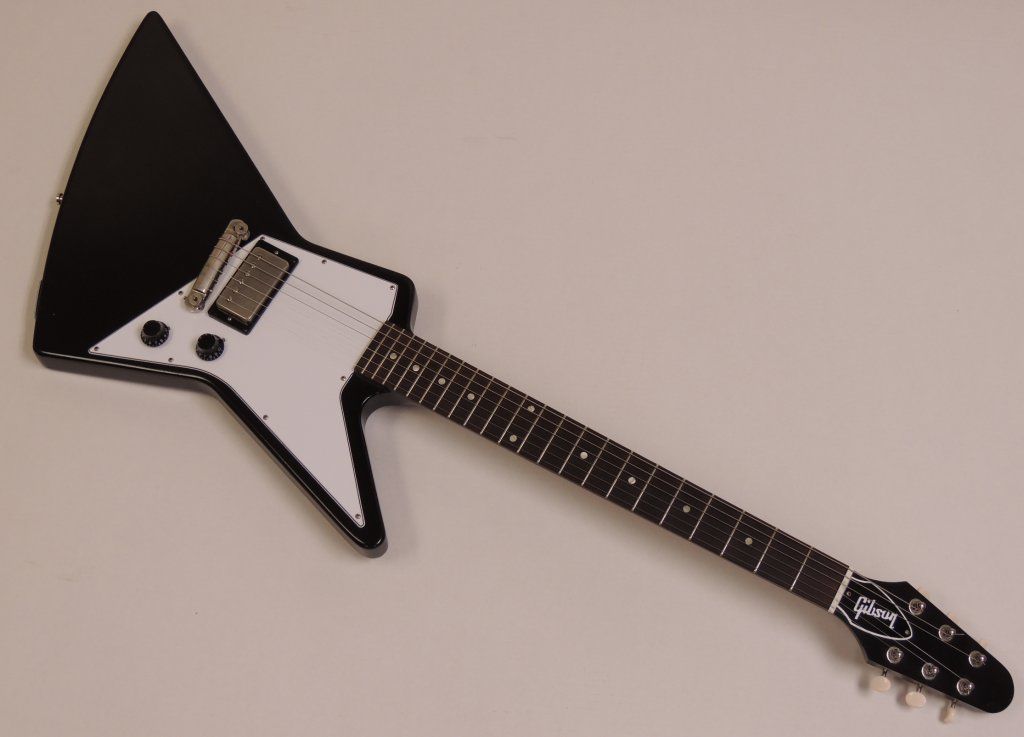

After looking at the BWBWB guard, I thought a white guard might look better so I made a 4-ply WBWB guard. I first assembled the guitar with just the pickup mounted to the guard as it came from the factory, but that looked a little unfinished so I added a pickup ring.

Also, I think a dark fretboard makes any guitar look better than a light-colored board. I had no idea how Fretdoctor might affect a baked maple board, but I was amazed when I brushed the oil onto it and the fretboard turned a deep chocolate brown. A 1000% improvement in appearance:


I installed an aged cover onto the JB and added a MojoAxe compensated wraparound along with a pair of locking studs

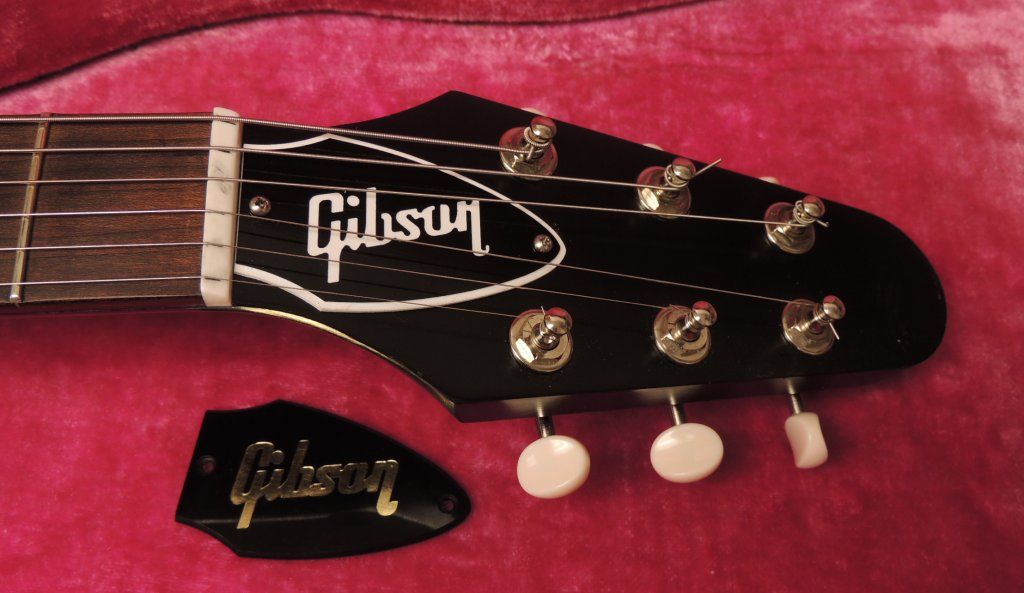

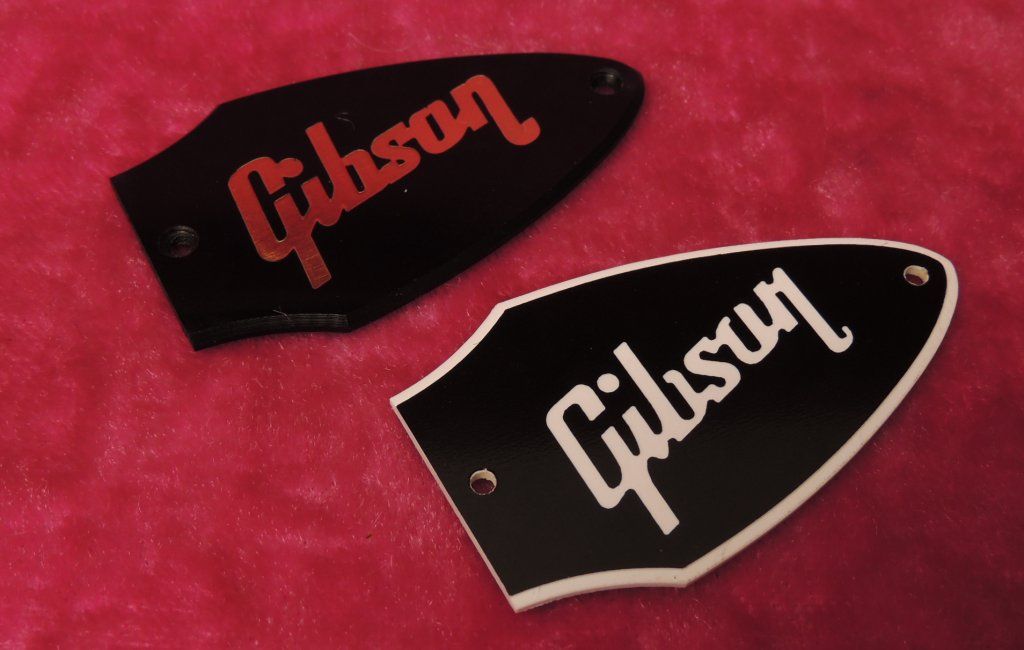

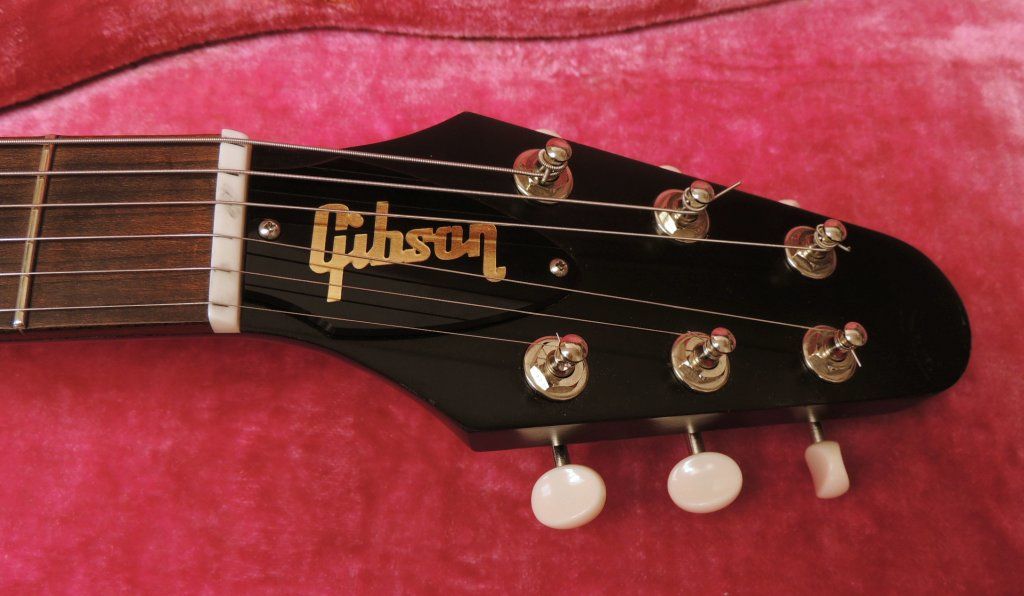

The last bit of cheapness remaining was the 1-ply truss rod cover with gold-leaf printing. I created the CAD data for the cover as well as the Gibson logo and machined a lapel-type cover from 2-ply laminate, which puts the finishing touch on the guitar







The best cheap guitar I've ever owned....




Attachments

stp

Senior Member
Joined
Jun 3, 2015
Messages
132
Reaction score
61
I thought of that same mod the only other thing would be a ajustable bridge


Bud Stoner

Premium Member
Joined
May 20, 2008
Messages
2,228
Reaction score
1,979
Wow! That is some damn fine work!

Also, that truss rod cover is nothing short of amazing!

One of those on my Joe B Firebird 1 would be freaking sweet!

And a pick guard with the bird...........:hmm::naughty:

Last edited:

bossaddict

@david.beason on IG
Premium Member
Joined
Apr 4, 2013
Messages
7,090
Reaction score
9,848
Nice mods, Dan. Love the wraparound bridge look on an Explorer.


jdmp

Member
Joined
Nov 24, 2015
Messages
78
Reaction score
71
That looks so cool. I wish I had your skills!


C_Becker

Dat Gibson smell
Joined
Jul 7, 2015
Messages
2,112
Reaction score
2,153
Very nice.
And I agree about the neck, I own a MM Flying V, fantastic.
I am currently modding mine with a new pickguard as well, and I installed a badass-stlye bridge with individual saddles


BWOTW

Senior Member
Joined
Apr 13, 2012
Messages
719
Reaction score
889
It should come just like that from the factory! Great taste!


Blushingmule

Junior Member
Joined
Feb 1, 2008
Messages
20
Reaction score
18
I grabbed this Melody Maker Explorer from the forum classifieds last month. I still find it hard to believe that I paid only $275 for this guitar including the soft case. I know its just an entry level Gibson, but this is a really wonderful guitar. The neck is very comfortable measuring .865" at the first fret which I would classify as a '59 profile. The fretwork is perfect. This is the time guitar I've owned with a baked maple fretboard, and although I initially thought it that going to baked maple was a step in the wrong direction, now that I've used it I really can't knock it. I don't like the light brown appearance of it, but more on that later.

I received the guitar in stock condition which is a pretty basic feature-wise. It features a wraparound bridge, a Gibson humbucker of some sort, a volume control (no tone) and an output jack, all of which are mounted to the pickguard. The plastic is all 1-ply and pretty bland looking. The good news is aside from its boring appearance, its a really nice playing guitar.





This guitar is just begging to be modded, and considering the price paid I figured its a no-brainer. Before I even received the guitar, my thoughts were to add a neck pickup. Once I had it in hand and took a look at the neck joint beneath the pickguard, I decided not to compromise its structure by routing it for the neck pickup.


Another mod I had in mind was to move the output jack to the side of the body and add a tone control to the pickguard. I clamped the body into my WorkMate and bored a hole for the jack. The body is too thin for a standard jack plate, so I had to make a rectangular plate.




Tone control and PIO cap added, and I replaced the stock pickup with a Duncan JB that was sitting in the parts drawer:



The stock 1-ply pickguard disappears into the body, so I made a 5-ply guard to make it stand out a bit more. I thought about changing the guards's profile, but that would mean filling holes and painting which I don't have time for right now so I kept the same profile. One thing that I don't like about this pickguard profile is that it goes under the bridge, so you have to remove the strings and bridge in order to tinker with the electronics.




After looking at the BWBWB guard, I thought a white guard might look better so I made a 4-ply WBWB guard. I first assembled the guitar with just the pickup mounted to the guard as it came from the factory, but that looked a little unfinished so I added a pickup ring.

Also, I think a dark fretboard makes any guitar look better than a light-colored board. I had no idea how Fretdoctor might affect a baked maple board, but I was amazed when I brushed the oil onto it and the fretboard turned a deep chocolate brown. A 1000% improvement in appearance:


I installed an aged cover onto the JB and added a MojoAxe compensated wraparound along with a pair of locking studs



The last bit of cheapness remaining was the 1-ply truss rod cover with gold-leaf printing. I created the CAD data for the cover as well as the Gibson logo and machined a lapel-type cover from 2-ply laminate, which puts the finishing touch on the guitar







The best cheap guitar I've ever owned....


LOVE it!
2011 Melody Maker? Have I been out of the loop?

I'm still kicking myself for donating a Melody Maker "SG" that I won on e-bay for $300 back in '01. It appeared green - 'twas blue (pulled the cover). The lacquer had yellowed over the years. Never thought of modding at the time.

Last edited:

kiko

Senior Member
Joined
Jul 16, 2015
Messages
1,168
Reaction score
1,334
Nice mods! I particularly like the TR cover :applause: I have the sg version and love it!


jimbob137

Senior Member
Joined
Oct 11, 2011
Messages
367
Reaction score
83
Brilliant work, looks like a guitar that justifies the fact it's a Gibson explorer.


Jura

Senior Member
Joined
Nov 3, 2008
Messages
347
Reaction score
126
Great job!
I think I like the black pickguards (both of them) a bit more.


northernguitarguy

SWeAT hOg
Joined
Feb 22, 2009
Messages
31,390
Reaction score
53,698
Looks kick ass, Dano! I luv MM's. I was wondering, is it possible and how much work involved to make it a string-thru body?


studio1087

Senior Member
Joined
Feb 4, 2010
Messages
2,309
Reaction score
2,017
You really improved it without killing the original mojo. Great work.

Joined
Jul 31, 2017
Messages
30
Reaction score
60
I grabbed this Melody Maker Explorer from the forum classifieds last month. I still find it hard to believe that I paid only $275 for this guitar including the soft case. I know its just an entry level Gibson, but this is a really wonderful guitar. The neck is very comfortable measuring .865" at the first fret which I would classify as a '59 profile. The fretwork is perfect. This is the time guitar I've owned with a baked maple fretboard, and although I initially thought it that going to baked maple was a step in the wrong direction, now that I've used it I really can't knock it. I don't like the light brown appearance of it, but more on that later.

I received the guitar in stock condition which is a pretty basic feature-wise. It features a wraparound bridge, a Gibson humbucker of some sort, a volume control (no tone) and an output jack, all of which are mounted to the pickguard. The plastic is all 1-ply and pretty bland looking. The good news is aside from its boring appearance, its a really nice playing guitar.





This guitar is just begging to be modded, and considering the price paid I figured its a no-brainer. Before I even received the guitar, my thoughts were to add a neck pickup. Once I had it in hand and took a look at the neck joint beneath the pickguard, I decided not to compromise its structure by routing it for the neck pickup.


Another mod I had in mind was to move the output jack to the side of the body and add a tone control to the pickguard. I clamped the body into my WorkMate and bored a hole for the jack. The body is too thin for a standard jack plate, so I had to make a rectangular plate.




Tone control and PIO cap added, and I replaced the stock pickup with a Duncan JB that was sitting in the parts drawer:



The stock 1-ply pickguard disappears into the body, so I made a 5-ply guard to make it stand out a bit more. I thought about changing the guards's profile, but that would mean filling holes and painting which I don't have time for right now so I kept the same profile. One thing that I don't like about this pickguard profile is that it goes under the bridge, so you have to remove the strings and bridge in order to tinker with the electronics.




After looking at the BWBWB guard, I thought a white guard might look better so I made a 4-ply WBWB guard. I first assembled the guitar with just the pickup mounted to the guard as it came from the factory, but that looked a little unfinished so I added a pickup ring.

Also, I think a dark fretboard makes any guitar look better than a light-colored board. I had no idea how Fretdoctor might affect a baked maple board, but I was amazed when I brushed the oil onto it and the fretboard turned a deep chocolate brown. A 1000% improvement in appearance:


I installed an aged cover onto the JB and added a MojoAxe compensated wraparound along with a pair of locking studs



The last bit of cheapness remaining was the 1-ply truss rod cover with gold-leaf printing. I created the CAD data for the cover as well as the Gibson logo and machined a lapel-type cover from 2-ply laminate, which puts the finishing touch on the guitar







The best cheap guitar I've ever owned....


Thats a beautiful axe!!!


wedontneedakey

Junior Member
Joined
Aug 30, 2013
Messages
15
Reaction score
7
Very cool. I went right to Reverb and Craigslist, looking for a cheap MM Explorer. Nada.
