machinehead repair

marantz1300

Senior Member
Joined
Sep 13, 2008
Messages
1,751
Reaction score
1,180

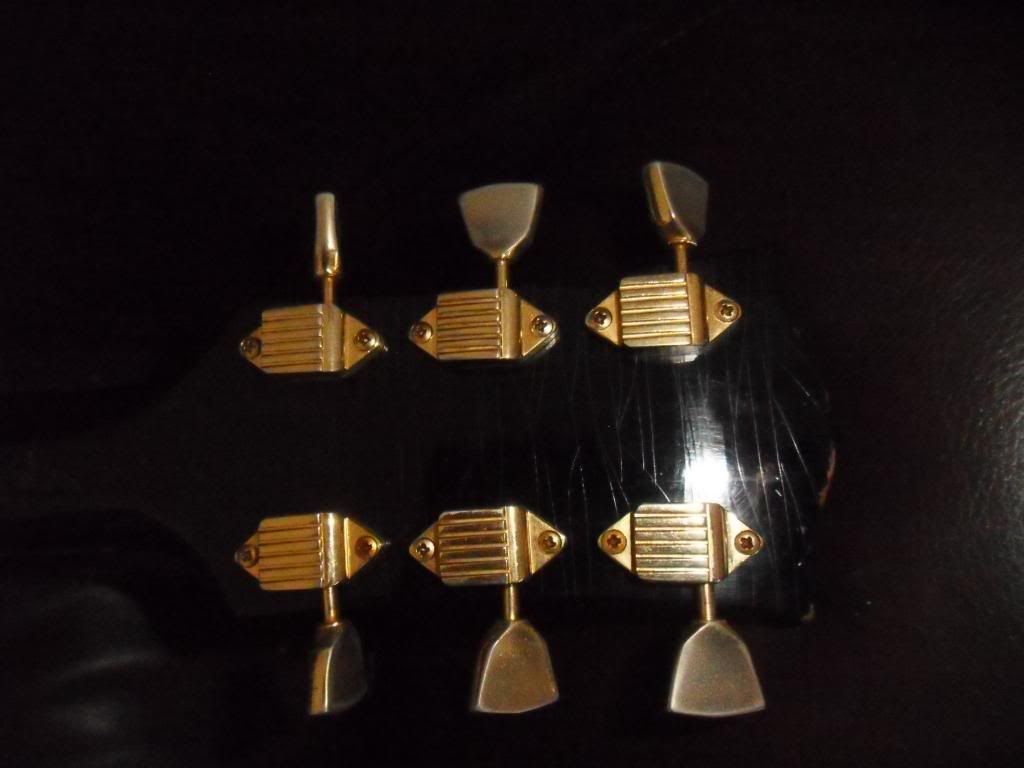

Is it possible to repair my waffle back machineheads?
They still work ,but feel a little loose.
/SDC11176_zps89aac385.jpg.html]
[/URL]


crazygtr

Senior Member
Joined
Mar 11, 2011
Messages
323
Reaction score
124
Haven't work with them before, maybe someone with experience with them will chime in.


tnt423

Senior Member
Joined
Jan 25, 2010
Messages
1,396
Reaction score
981
Anything is possible, whether it's a good idea to try or not is a whole nuther story.
Feeling loose is not a problem as long as they hold tune well. Do they only feel loose when they don't have string on them or is there a lot of backlash under tension?


marantz1300

Senior Member
Joined
Sep 13, 2008
Messages
1,751
Reaction score
1,180
I can't see the picture.
It's a 69 Les Paul Custom.They are waffle backs.

Anything is possible, whether it's a good idea to try or not is a whole nuther story.
Feeling loose is not a problem as long as they hold tune well. Do they only feel loose when they don't have string on them or is there a lot of backlash under tension?
They hold tune,just feel a little vague.
I want to improve the feel if possible.I like machineheads that feel tight.


Cygnus X1

Senior Member
Joined
Jul 18, 2009
Messages
6,570
Reaction score
2,967
Can you bend the tangs out to disassemble?
I've repaired vintage Klusons by doing that.

If not I'd look at getting higher quality repros.


tnt423

Senior Member
Joined
Jan 25, 2010
Messages
1,396
Reaction score
981
You can carefully bend the tangs out to remove the back the see if you can remove the gear from the shaft and install a very thin washer under the gear to tighten them up then reinstall the gear and reassemble.
I had to hone some very small washers on a stone to do this once. Took forever.
If you have any doubt about your ability to bend the tangs, get reproductions and hang on to these. once you break the tang they are done and useless.


jimi55lp

Senior Member
Joined
Mar 24, 2007
Messages
2,029
Reaction score
335
I'm not familliar with any type "waffle back" tuner, but if your going to try it for the first time, I'd get a few extras to experiment with so you don't ruin your originals. I've also restored vintage Deluxe Klusons.


Dougie

Senior Member
Joined
Dec 11, 2008
Messages
2,013
Reaction score
1,108
Yep get the repro waffle backs and SAVE the originals.. They're probably worth several hundred bucks by now.
