I've had a bit of a break from this project (working on other people guitars!), but have now made some meaningful progress. This update is all about the fingerboard, so it's more standard guitar building than restoration.

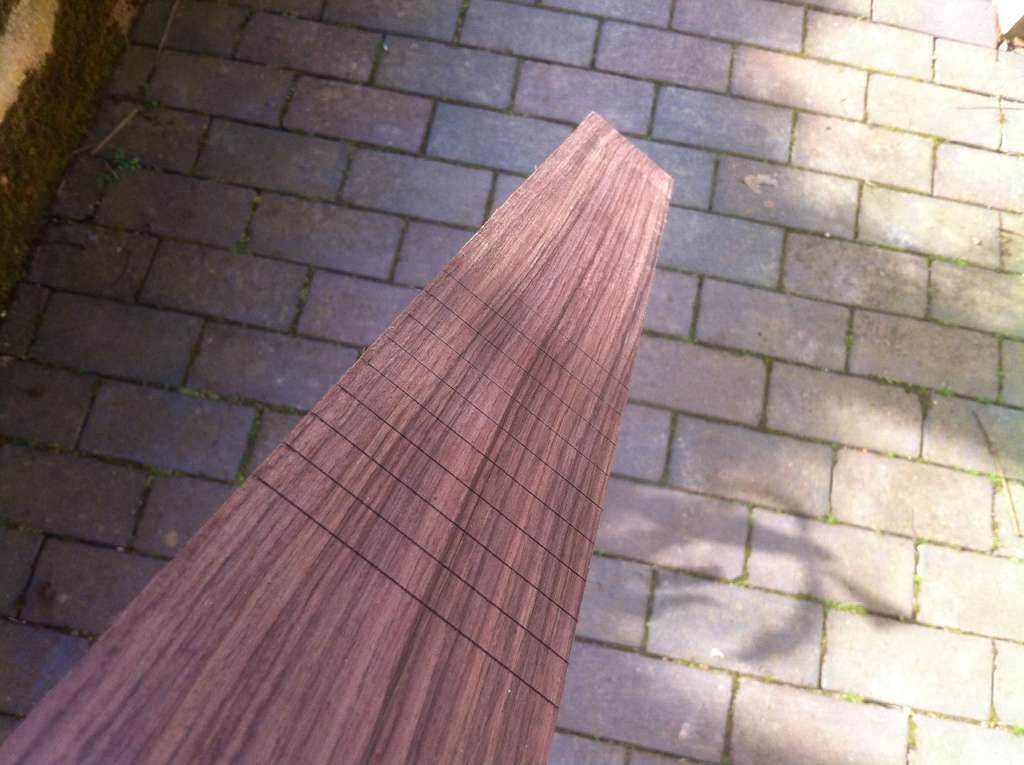

This is the fingerboard I will be using, a preslotted (19 frets) rosewood board with good figure.



The first job was to the taper the fingerboard to the neck. This was done by first making a template then using this template to rout the fingerboard.

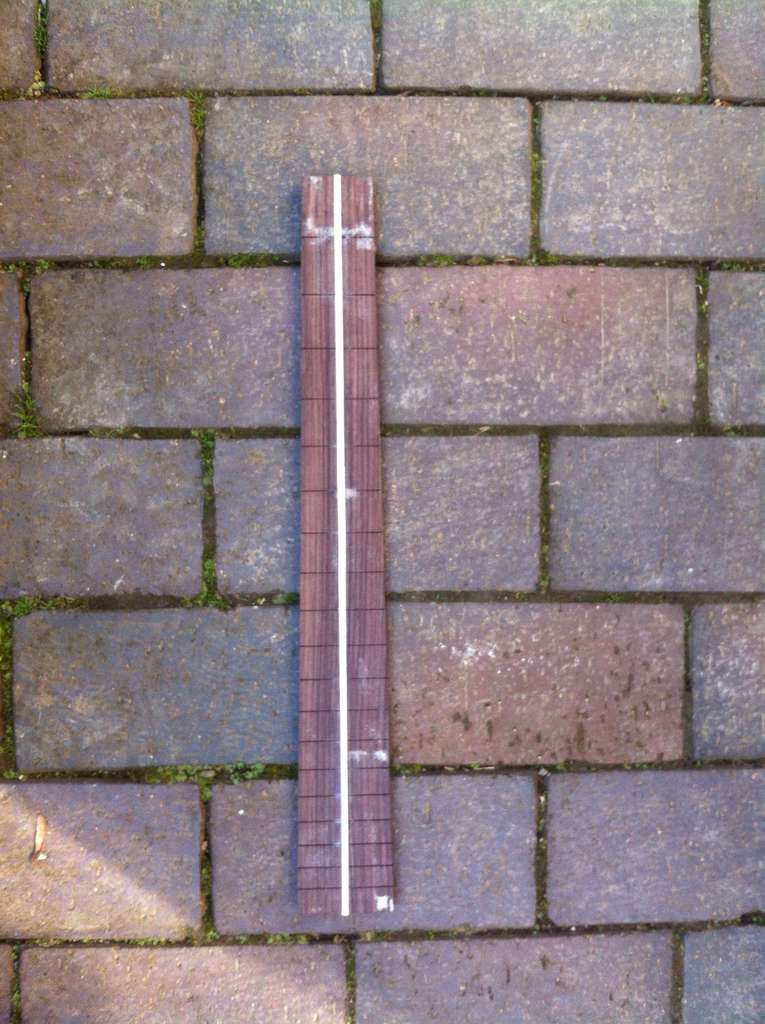

Now the guitar earns it's stripes...Literally! The Cromwell guitars often featured a rather attractive touch, having either one or two binding stripes down the fingerboard. For a guitar of this era a single stripe was more common, so that's what I have gone with! This slot was cut in the same way I would a truss rod (though much narrower and shallower!). Please excuse the white double sided tape residue.

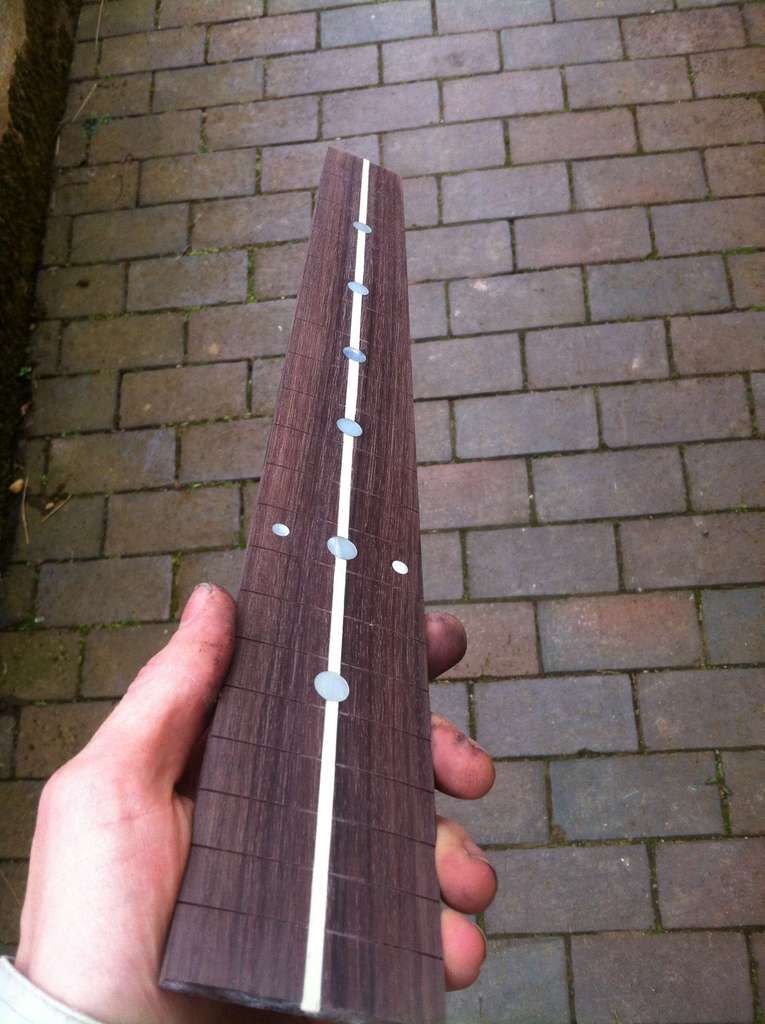

Next the board was given it's radius, then the inlay installed.

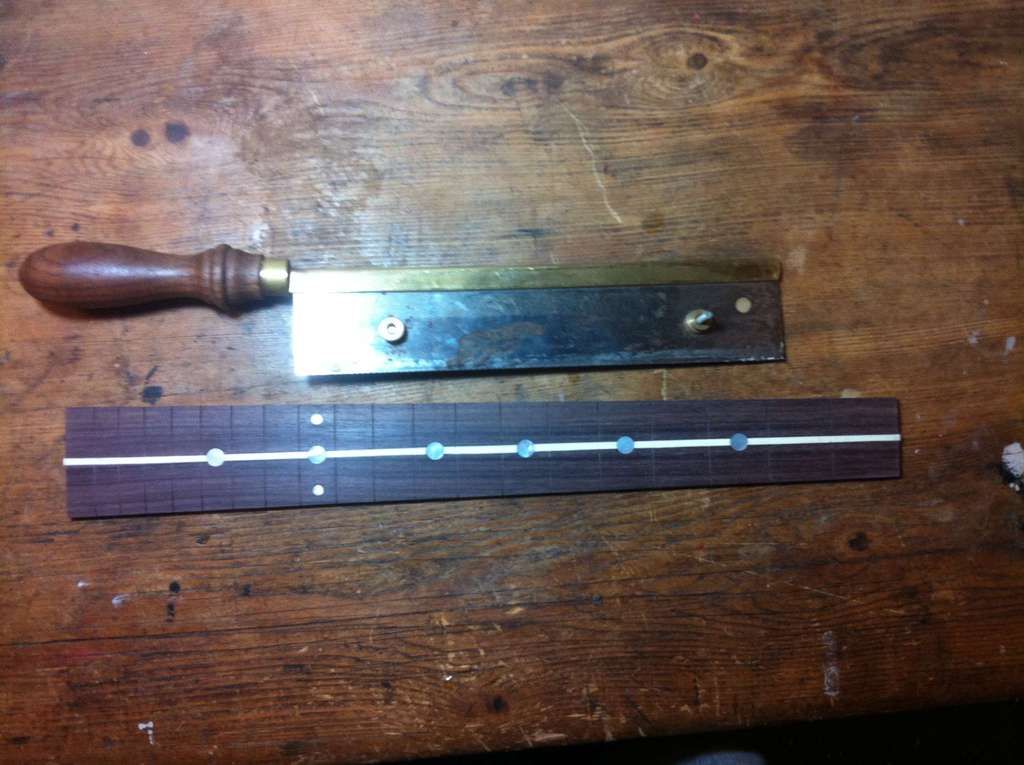

Before the binding gets fitted I ensure all fret slots are cut to the correct depth after the radiusing. This is done with a saw and depth stop.

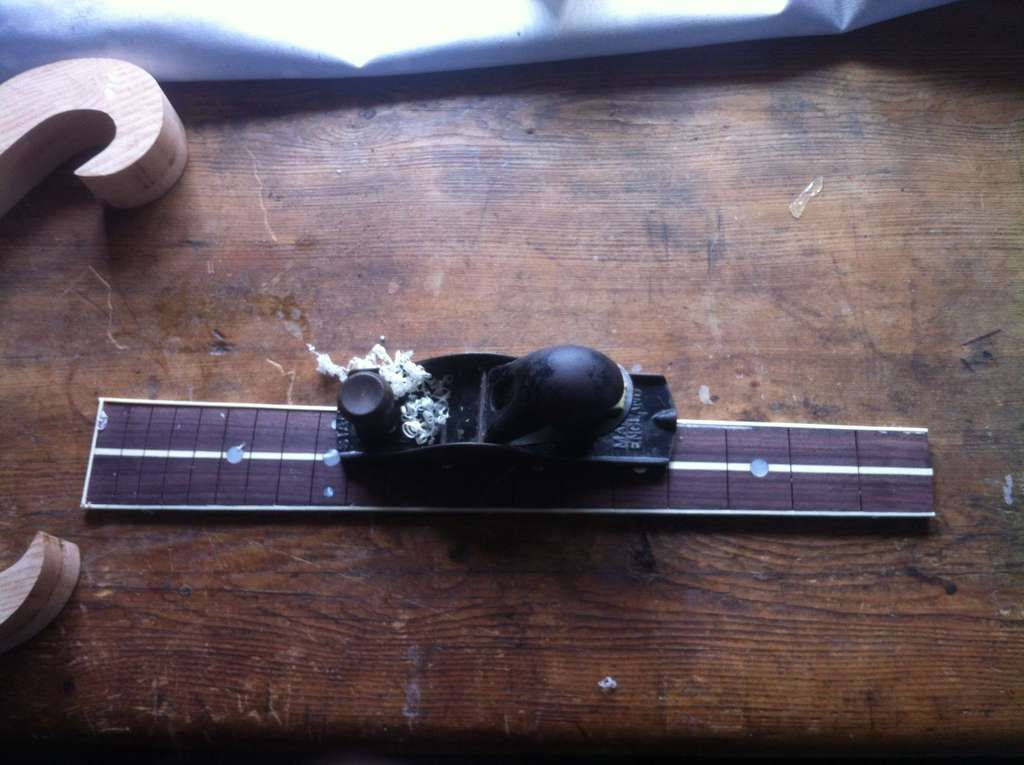

Binding glued and being planed to the board using a small block plane.

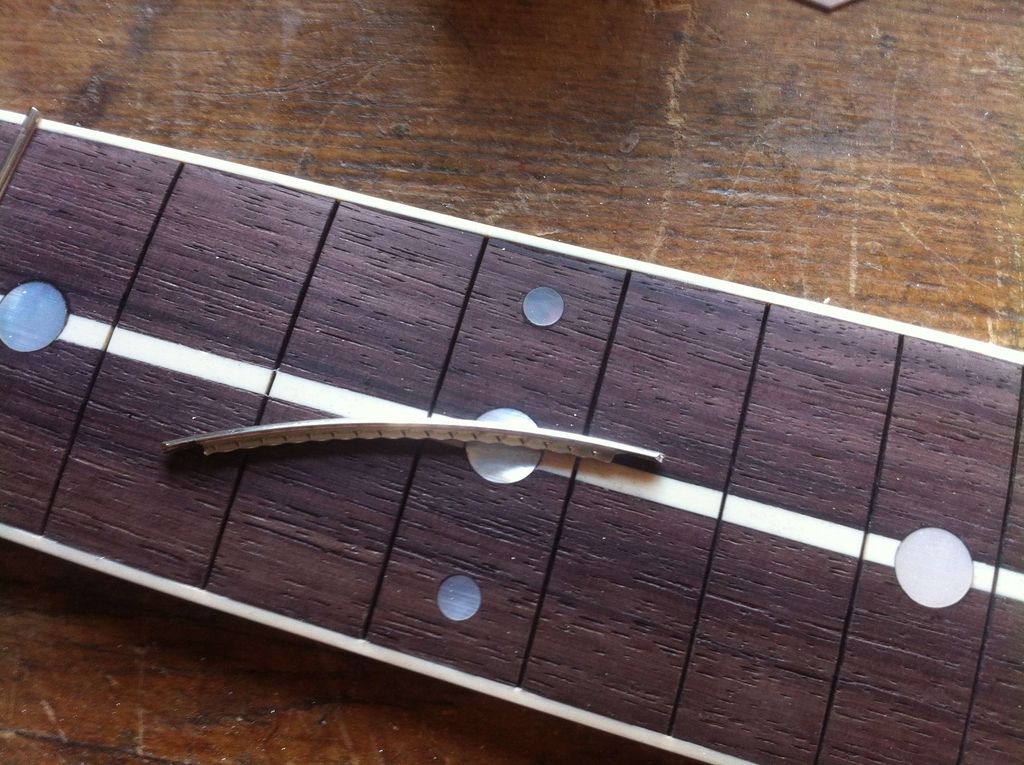

I now move onto fretting. Tapping them in before the board was glued to the neck made the most sense to avoid hammering onto the guitar and having to support the neck. The wire is pre bent and the tang removed from each end, the section beyond the tang is not yet cut to size (so there isn't as much tang missing as it looks)

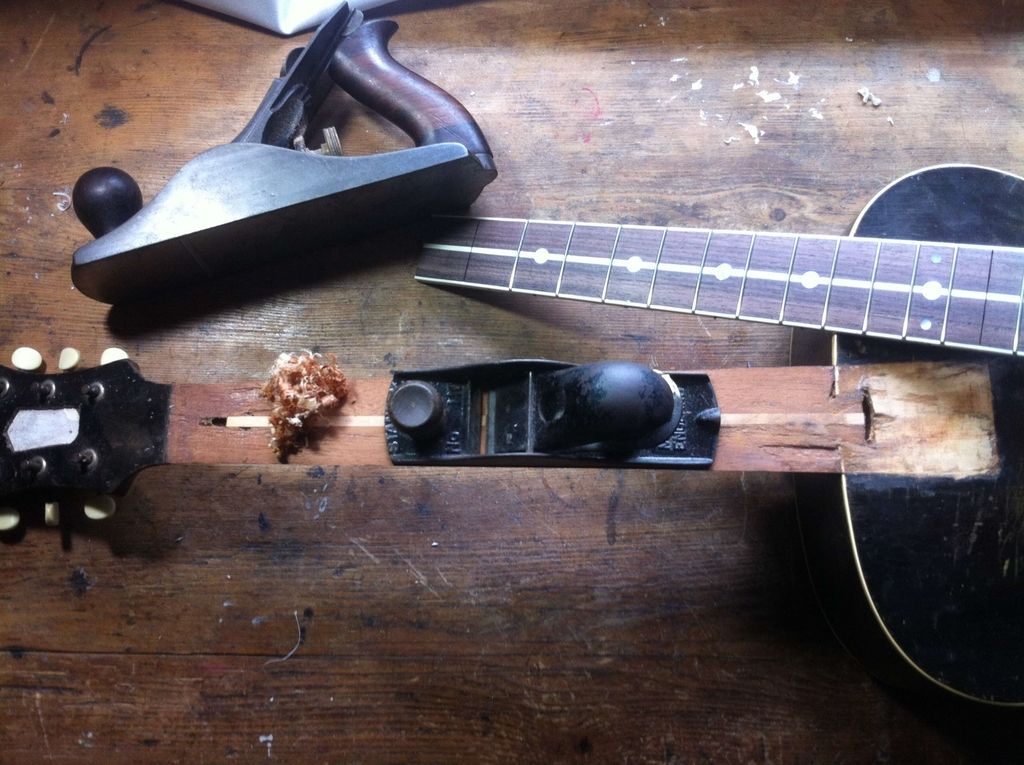

The surface of the neck needed planing as previous fingerboards (!) had left pieces behind and a lot of glue. I used the two planes here for this task removing very little material.



You'll notice here there is a fret missing...well actually there are two missing, one towards the heel and the first one (pictured here). These two will be installed after the fingerboard has been glued to the neck so I can utilise the slots for alingment pins, this ensures the neck does not slip during glue up.

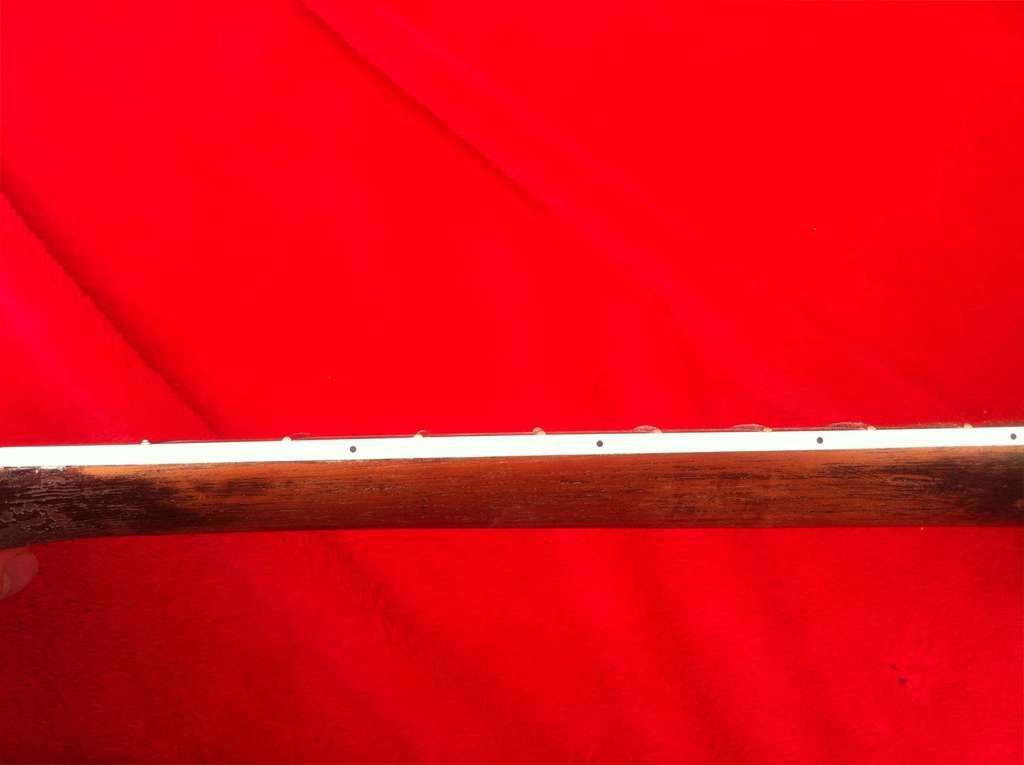

Here you can see the frets have been beveled and the side dots fitted. These jobs were actually completed before the board was glued but I didn't get a picture till after. So here the board has now been glued up.



A shot of the fingerboard post glue up!

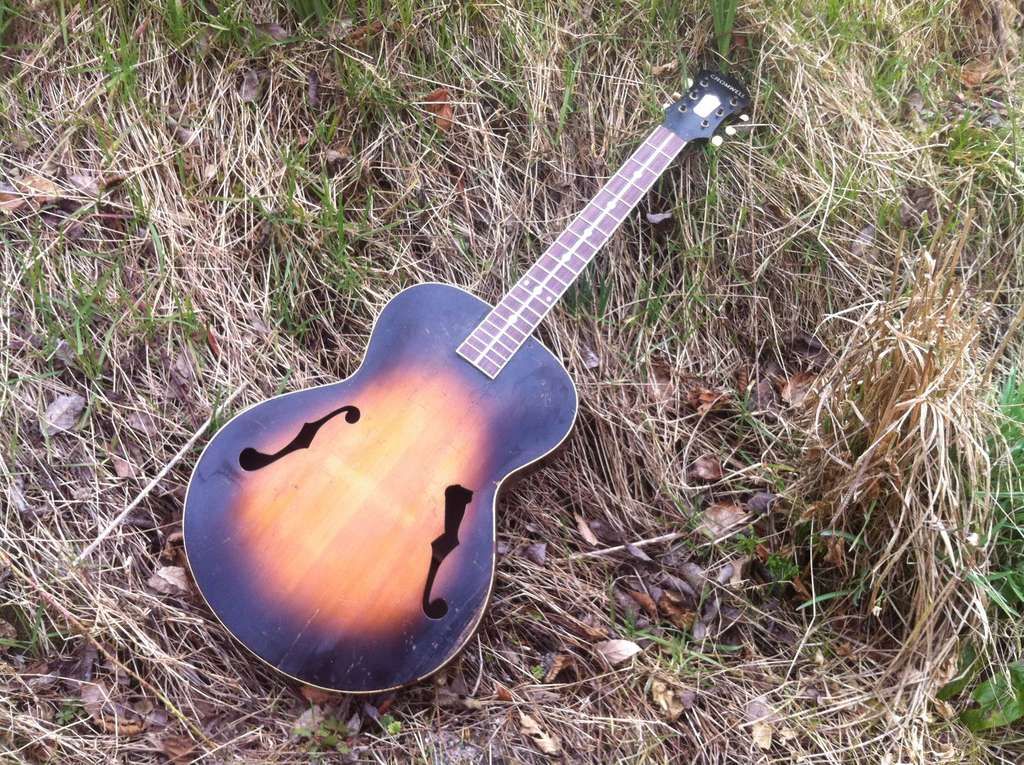

A shot of the full guitar



The Cromwell in it's natural habitat!



That's all for now, thanks for checking this restoration out More soon!



[cjstcustom]

So good! Thanks for sharing



[Manton Customs]

No problem, thanks for watching



[xroadie_jim]

Thank you so much. Love this restoration!!!!



[Manton Customs]

It's been wayyy to long since I updated this, the restoration was completed months ago so here are the final few pictures of the restoration. Then I'll get some decent completed pics up.

Anyway, here are some of the now repaired side. You can still see where the damage was, but it's quite an attractive fix maintaing maximum original material and blending in nicely. Though most importantly the guitar is now completely solid and stable.
The areas were colour matched with tinted Nitro followed by clear, then buffed out to match the surrounding areas.

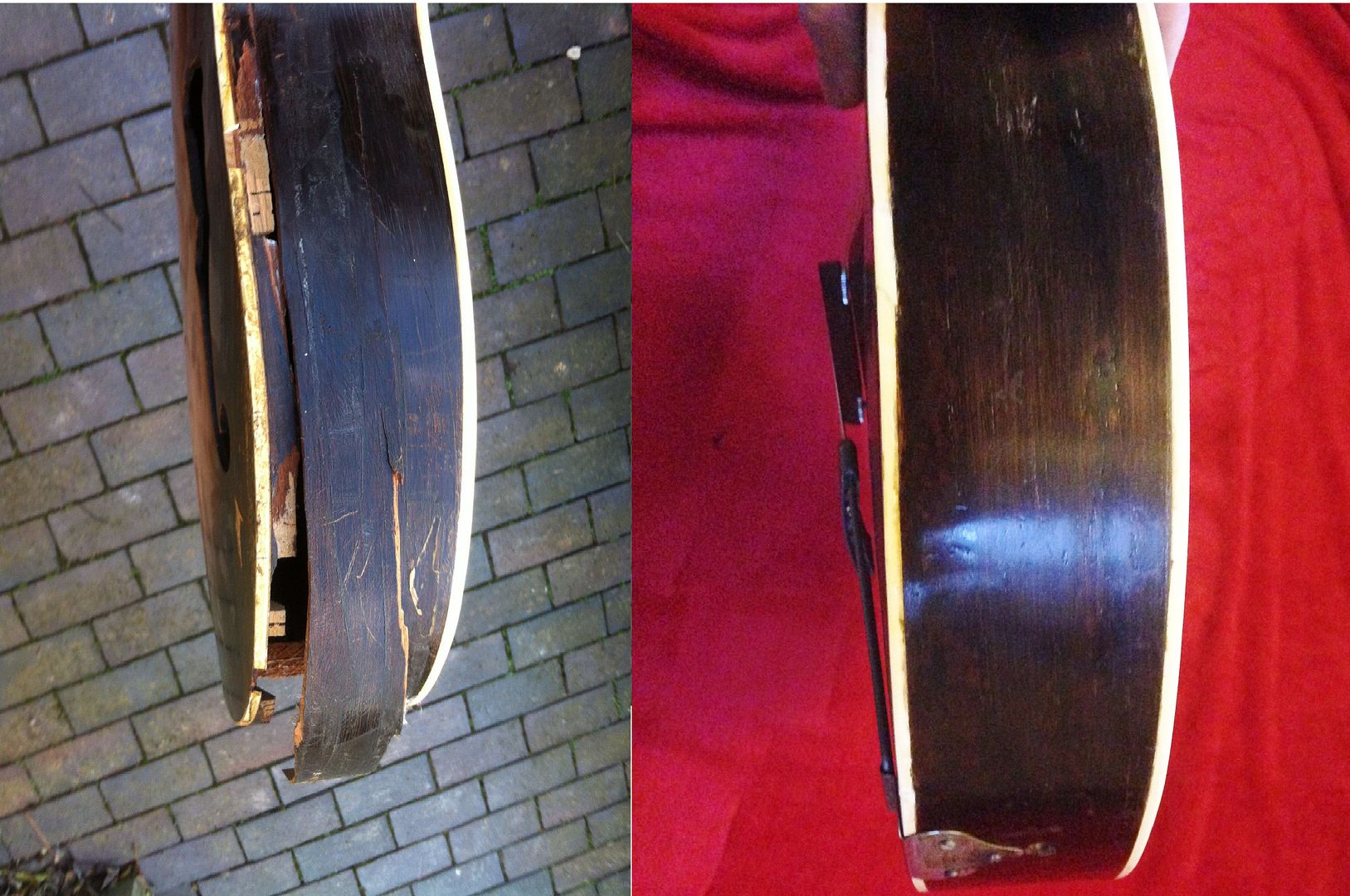

And for fun a quick before and after shot



Next up I made a bridge for it out of Brazilian Rosewood. I took some progress pictures of this and wrote a bit of a tutorial, so if anyones interested in seeing how to make a wooden bridge, I'll put these up.



Slotting the bridge.



Now the headstock gets some love, replacing the ill fitting piece of plastic with a well fitted Mother of Pearl inlay, which gives the headstock a touch of class!



Next up... finished pictures! Thanks for watching
