Name of the Grain

Discussion in 'Historics & Reissues' started by delawaregold, Jul 19, 2013.

  1. delawaregold

    delawaregold _______Artie_______ Super Mod

    Messages:
    5,327
    Likes Received:
    8,258
    Joined:
    Sep 1, 2007
    .




    The discussion of Rings, is really a discussion of Grain.
    It isn't fair to hijack the Flame Thread, so I started a Grain Thread.

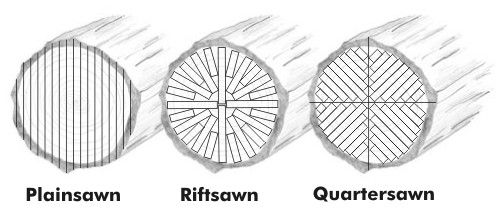

    Quarter Sawn
    [​IMG]

    Flat Sawn (Plain)
    [​IMG]

    Rift Sawn
    [​IMG]

    [​IMG]

    More to come.




    .

  2. Sct13

    Sct13 Gold Supporter Premium Member

    Messages:
    16,436
    Likes Received:
    18,822
    Joined:
    Sep 18, 2011
    Thank you! :thumb:

    can you lay out how the grain and figure relate?

  3. Musashi

    Musashi Junior Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Jul 19, 2013
    Wow, great thread. Thank you very much, very helpful!

  4. oli

    oli Senior Member

    Messages:
    1,484
    Likes Received:
    1,063
    Joined:
    Aug 18, 2011
    Great thread, thanks !

  5. wild turkey

    wild turkey Senior Member

    Messages:
    397
    Likes Received:
    283
    Joined:
    Jun 12, 2010
    Is there any differences in tone between cuts
    Just curious because I have a flatsawn standard & its a tone monster

    [​IMG]

    11 people like this.
  6. delawaregold

    delawaregold _______Artie_______ Super Mod

    Messages:
    5,327
    Likes Received:
    8,258
    Joined:
    Sep 1, 2007
    .



    When a Tap Tone test is performed on a piece of lumber,
    there is a different tone produced when holding the wood
    and tapping across the grain, and holding the wood and
    tapping with the grain. I have not read that the cut affected
    tone, but the orientation of the grain to the finished piece
    may have a distinct difference. Here is where we need a
    few of our Luthiers to jump in.
    The cut of the wood will play a part with regard to stability.
    Especially in the smaller cuts, like the necks.
    Although Quarter Sawn wood is stiffer and more resistant
    to warping and cupping than Flat Sawn wood. It is also
    more resistant to Truss Rod adjustments. If you notice,
    Neck Blanks are sold both Quarter Sawn and Flat Sawn.
    I would suppose, just for that reason. I don’t know what
    difference it will make in a big slab of wood, like a body.






    .

    herbalist, mgenet, 7gtop and 11 others like this.
  7. LPCollector

    LPCollector V.I.P. Member

    Messages:
    7,565
    Likes Received:
    9,343
    Joined:
    Sep 2, 2007
    Thank you, Artie!!!!!

    Excellent info!!!!!
    :applause::thumb:

    3 people like this.
  8. jc2000

    jc2000 Senior Member

    Messages:
    5,597
    Likes Received:
    2,334
    Joined:
    Jul 16, 2013
    I love learning new things, Thanks!

    2 people like this.
  9. CRobbins

    CRobbins Premium Member

    Messages:
    6,215
    Likes Received:
    6,766
    Joined:
    Feb 20, 2012
  10. Brian I

    Brian I Senior Member

    Messages:
    474
    Likes Received:
    608
    Joined:
    Apr 17, 2012
    IME, no. I believe most other builders would tend to say the same thing.

    Bruce Sexauer, a well respected acoustic guitar builder, brought this guitar to the Woodstock guitar show a few years ago, and although I personally didn't care for the Brazilian rosewood back aesthetically, the guitar sounded just as astonishingly good as Bruce's other Brazilian rosewood guitars.

    [​IMG]

    Quartersawn wood is typically chosen for acoustic guitars as it is much more dimensionally stable than flat and rift sawn wood. while most necks (especially those of mahogany) are quartersawn, the grain orientation of an electric body is less imperative as a 1 3/4" slab of mahogany laminated with maple is much less likely to warp or cup than a .100" thick spruce top of an acoustic.

    herbalist, 7gtop, Boston Dan and 6 others like this.
  11. Sct13

    Sct13 Gold Supporter Premium Member

    Messages:
    16,436
    Likes Received:
    18,822
    Joined:
    Sep 18, 2011
    Wow!!!

    Rapunzel grain...

    Great piece of info too, thanx for posting. :thumb:

  12. Sct13

    Sct13 Gold Supporter Premium Member

    Messages:
    16,436
    Likes Received:
    18,822
    Joined:
    Sep 18, 2011
    1 person likes this.
  13. d1m1

    d1m1 Senior Member

    Messages:
    2,302
    Likes Received:
    2,396
    Joined:
    Oct 30, 2012
    here is how the neck grains look like.
    in rift sawn is the grain in the neck straight and in the headstock across.
    in quarter sawn is the grain in neck and headstock all the way straight.

    [​IMG]

  14. ctkarslake

    ctkarslake Senior Member

    Messages:
    2,224
    Likes Received:
    371
    Joined:
    Oct 31, 2009
    I wonder why Gibson would use BOTH rift and quarter sawn wood for necks. Why not go with one type and not change it up from guitar to guitar??? I'm sure the answer is that we can only speculate.

  15. Brian I

    Brian I Senior Member

    Messages:
    474
    Likes Received:
    608
    Joined:
    Apr 17, 2012
    Gibson used what they had at hand and weren't all too picky in terms of wood selection. This is evident in their guitars from all eras: take this 39 J-35 for example. The back is a one piece and is flat sawn. Gibson used the one piece back to save time in the building procedure, and rather than use exceptionally large trees so they could get perfectly quartersawn one piece backs, they just used flatsawn wood.

    [​IMG]

    5 people like this.
  16. Sct13

    Sct13 Gold Supporter Premium Member

    Messages:
    16,436
    Likes Received:
    18,822
    Joined:
    Sep 18, 2011
    Wow...looks like the storm on Jupiter.

    Very nice.

    1 person likes this.
  17. Sharky

    Sharky Senior Member

    Messages:
    4,559
    Likes Received:
    3,640
    Joined:
    Jan 19, 2012
    very interesting thread, Delawaregold, thanks for posting.

    It always gives me a hard time to imagine how the wood was orientated in the sawing process when I look a certain piece of cut wood. No I'm doing a bit better. Pictures stored as well

    1 person likes this.
  18. mgenet

    mgenet Earth = Cheese Burger Silver Supporter

    Messages:
    10,354
    Likes Received:
    13,689
    Joined:
    Sep 18, 2010
    Thanks, guys, but too much like math and it really doesn't
    helps with the playing...

  19. treatb

    treatb Senior Member

    Messages:
    438
    Likes Received:
    83
    Joined:
    Apr 4, 2009
    i don't think the type of sawing used will effect tone, but it will effect durability.

    1 person likes this.
  20. LPCollector

    LPCollector V.I.P. Member

    Messages:
    7,565
    Likes Received:
    9,343
    Joined:
    Sep 2, 2007
    :facepalm:

    8 people like this.
