Name of the Flame

Discussion in 'Historics & Reissues' started by LPCollector, Dec 25, 2012.

  1. LPCollector

    LPCollector V.I.P. Member

    Messages:
    7,562
    Likes Received:
    9,338
    Joined:
    Sep 2, 2007
    Name of the flame.

    We have had a lot of questions around here lately regarding descriptions of the different types of flame….notice that I said description and NOT definition.
    I will do my best to clarify the descriptions, as I see it.

    As with all things pertaining to Mother Nature.…there are no absolutes.
    One can even have a conglomeration of different types of flame on a single top making their description a Supercalifragilisticexpialidocious style of verbal exercise.

    For this exercise, we will concentrate on the tops that are best described by a single definition.
    I am going to generalize and speak in very broad strokes, to some degree.
    We will not be speaking of Blister or Bird’s Eye, as I define those as figure and NOT flame.

    TYPES OF FLAMES:
    1) Curl
    2) Ribbon Curl
    3) Flame
    4) Tiger Stripe
    5) Pin Stripe
    6) Fiddleback

    THE DIRECTION OF THE FLAME:
    1) Chevron
    2) Reverse Chevron
    3) Gullwing
    4) Horizontal

    Let’s start with the controversial direction of the flame first.
    As dictionary definition states “chevron” as:
    Noun:
    “A line or stripe in the shape of a V or an inverted V, esp. one on the sleeve of a uniform indicating rank or length of service.”
    Since there is no clear definition of a chevron’s direction, as it pertains to Les Paul’s, I am going to create my own little kingdom and make a declaration as if I were the exalted ruler of this fictitional land. I do hereby declare that this is Chevron:

    [​IMG]

    ….and this is reverse Chevron:

    [​IMG]

    This is Gullwing (Hot Lanta):

    [​IMG]

    This is an example of Horizontal:

    [​IMG]

    Now that we know what direction that our flames are going, let’s delve into the flame itself. The following illustration is a novel way to help visualize the type of flame that you are trying to describe.

    [​IMG]

    Keeping a mental visualization of this picture has helped me keep it as straight as I understand it.
    Flame size is a pyramid shape, in general, for this exercise as well.

    At the base of the fire, there is the Curly Flame.
    (5) Curly is best described as having large, wide, flame “fingers” with equally large “bare” spots and in a very random flame pattern. This flame pattern has very few flame “fingers” per square inch….just like the flames found at the base of a log burning.
    The potential top on the far right, is a Curly pattern:

    [​IMG]

    (4) Ribbon Curl is found next highest, on our flame compared to fire, scale. Very similar to Curl, Ribbon Curl is differentiated by the smaller size of the flame “fingers” and a higher number of flame “fingers” per square inch but retaining equally large “bare” spots as it’s flamed “finger” counterparts….and like the name implies, looks like ribbons. Found a few inches up from the base of our proverbial fire/flame comparison.

    [​IMG]

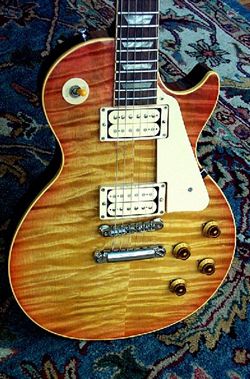

    (3) Flame is found next highest, and just like our fire sample, Flame gets more focused and defined compared to ribbon Curl. This is a very broad term, but generally means everything from a more defined Ribbon Curl sized “finger” to a wavy version of a Tiger Stripe sized “finger” of flame…..and everything in between. The majority of Les Paul tops will fall into this category. Visualize the middle section of our proverbial fire, as a reference.

    [​IMG]

    (2) Tiger Stripe is a highly focused and highly defined flame. Usually, Tiger Stripe is symmetrical with crisp and straight edges on the flame “fingers”.

    [​IMG]

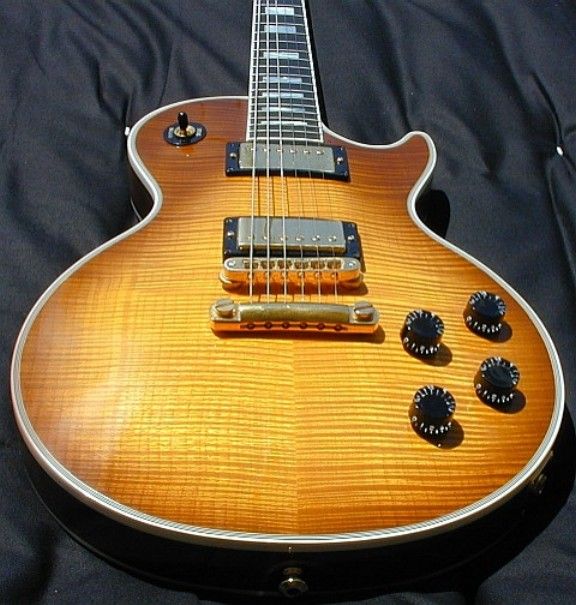

    (1) Pin Stripe is very much like Tiger Stripe with much smaller “fingers” to the flame. Very symmetrical patterns with straight “fingers”, very focused and defined much like the fingertips of our proverbial fire.

    [​IMG]

    (1) Fiddleback flame is also found at the very top of our proverbial fire. Similar in size only to a Pin Stripe, the Fiddleback top is tight, highly focused, very wavy and highly symmetrical. The “fingers” of the flame appear to be interlocked at times. The most notable Fiddleback would be Pearly Gates.

    [​IMG]

    [​IMG]

  2. Johan Ehn

    Johan Ehn Senior Member

    Messages:
    379
    Likes Received:
    631
    Joined:
    Mar 1, 2012
    Interesting reading for anyone. Especially for a rookie like me :thumb:

    2 people like this.
  3. CRobbins

    CRobbins Premium Member

    Messages:
    5,988
    Likes Received:
    6,319
    Joined:
    Feb 20, 2012
    Great job! :applause::applause::applause:

    2 people like this.
  4. Backstage

    Backstage Senior Member

    Messages:
    3,698
    Likes Received:
    2,715
    Joined:
    Nov 4, 2011
    Well done! You've found nice examples.

    1 person likes this.
  5. journeyman73

    journeyman73 Senior Member

    Messages:
    1,480
    Likes Received:
    338
    Joined:
    Nov 3, 2009
    great post and idea, though i disagree a little bit with ribbon and tiger stripe examples

    2 people like this.
  6. lkft

    lkft Senior Member

    Messages:
    213
    Likes Received:
    181
    Joined:
    May 17, 2011
    Nice post. Very informative. I think it is also worthy mentioning the type of cut used in the top...i.e.: quarter sawn, flat sawn, rift sawn, etc. as each one will display the figure differently. The first example shown (chevron) is clearly quarter sawn which can be determined by the parallel gain lines running perpendicular to the figure. The other examples are hard to tell.

    3 people like this.
  7. Sct13

    Sct13 Premium Member

    Messages:
    16,242
    Likes Received:
    18,531
    Joined:
    Sep 18, 2011
    Perfect Lesson, you nailed it. As a student of wood I have a question.

    Isn't the flame part of the figure as well? Or is figure and flame two different things? The rational for my question is that the figure and flame as well as quilt are caused by the same thing.

    I look forward the rest of this lesson, I am glad its a sticky! Will be covering grain and cuts?

    Again Great Post! :wave:

    2 people like this.
  8. Neofelis Nebulosa

    Neofelis Nebulosa Senior Member

    Messages:
    1,088
    Likes Received:
    1,020
    Joined:
    May 23, 2010
    this noob likes this thread as well :thumb:

    Loving the fiddleback

    1 person likes this.
  9. FennRx

    FennRx Senior Member

    Messages:
    17,124
    Likes Received:
    27,237
    Joined:
    Feb 21, 2008
    Mark, you should add an example of a BBQ top since that one gets thrown around a fair amount.

    1 person likes this.
  10. delawaregold

    delawaregold _______Artie_______ Super Mod

    Messages:
    5,307
    Likes Received:
    8,117
    Joined:
    Sep 1, 2007


    Flat or Plain Sawn


    [​IMG]



    Quarter Sawn


    [​IMG]



    Rift Sawn


    [​IMG]

    20 people like this.
  11. LPCollector

    LPCollector V.I.P. Member

    Messages:
    7,562
    Likes Received:
    9,338
    Joined:
    Sep 2, 2007
    Well done, Artie!!! :applause:

    1 person likes this.
  12. oli

    oli Senior Member

    Messages:
    1,484
    Likes Received:
    1,063
    Joined:
    Aug 18, 2011
    Thanks for this very interesting post !

    1 person likes this.
  13. hidetox

    hidetox Senior Member

    Messages:
    899
    Likes Received:
    727
    Joined:
    Nov 4, 2010
    Awesome post! thanks a lot for this!

    1 person likes this.
  14. LPCollector

    LPCollector V.I.P. Member

    Messages:
    7,562
    Likes Received:
    9,338
    Joined:
    Sep 2, 2007

  15. FUS44

    FUS44 Senior Member

    Messages:
    8,715
    Likes Received:
    10,555
    Joined:
    Nov 13, 2007
    The flame diagram using actual fire is very interesting and accurate. The next post should cover grain/cut. The cut was touched on with the saw diagrams, but it really is another layer.
    I find many tops mix two types of flame, by your definitions.
    Great post.

    3 people like this.
  16. delawaregold

    delawaregold _______Artie_______ Super Mod

    Messages:
    5,307
    Likes Received:
    8,117
    Joined:
    Sep 1, 2007


    Keep checking back! The Holidays are a hectic time, trying
    to balance family obligations and work, while doing research
    so we are presenting accurate information, it may take a little
    longer than usual. I will be putting some information together
    about Book Matched, vs. Filtch Matched Maple Tops, I will
    also show some of the Blister, Quilted, and Birds Eye varieties
    of Maple. While all of these are Figured, not all are Flame.








    .

    2 people like this.
  17. Sharky

    Sharky Senior Member

    Messages:
    4,507
    Likes Received:
    3,580
    Joined:
    Jan 19, 2012
    i once found that picture which is interesting

    [​IMG]

    14 people like this.
  18. Bottleneck

    Bottleneck Senior Member

    Messages:
    614
    Likes Received:
    733
    Joined:
    Dec 2, 2010
    Nice. That illustration gives me a great perspective in one shot. Thanks!

  19. Sharky

    Sharky Senior Member

    Messages:
    4,507
    Likes Received:
    3,580
    Joined:
    Jan 19, 2012
    you're welcome. I found it because I ddn't know the difference between the different sawing processes and googled it. I think it explains much

  20. Bottleneck

    Bottleneck Senior Member

    Messages:
    614
    Likes Received:
    733
    Joined:
    Dec 2, 2010
    What would you guys call this one?

    [​IMG] [​IMG] [​IMG]

    I've always though of it as a ribbon curl, but not sure.
    It's a 2001 LP Standard Plus Honeyburst
