335 Electronics Installation (a.k.a. How to take years off your life)

Discussion in 'Tonefreaks' started by hillbilly, Apr 8, 2009.

  1. hillbilly

    hillbilly V.I.P. Member

    Messages:
    1,399
    Likes Received:
    270
    Joined:
    Jan 31, 2008
    By popular demand... :D


    OK, first, let me stress how important preparation is for this kind of electronics install. This isn't something you can do an hour before a gig.

    You'll need:


    • Rubber or Plastic Tubing. I use aquarium air-hose tubing. 50ft/$2.50 at WalMart in the pet section. Cut 4 pieces of 3-ft-long each.

    • A 1/8" dowel rod, at least 2 ft long. At least I think it's an 1/8"...

    • A 1/4" plug. Cut this sucker off, and jam the 1/8" dowel rod in the end of it. SuperGlue might help make it more sturdy.

    • A hex-nut. The kind that goes on the pots.

    • 6 ft of scrap wire, cut into 3-ft lengths.

    • A shoelace. The thinner, the better.

    • Towels, cloth or paper. Lots of them. I prefer cloth, but you have what you have.


    To start, you gotta get the old harness out. But first, before you go tearin' into the guitar to get the pot harness out, >think<: what could impede my progress?

    Yes, the ground wire. The ground wire is commonly soldered on the metal braid of the Bridge pickup lead. So, in my experience, it is best to remove this first. It is wrapped around the braid, and soldered on good, so you'll have to carefully apply your iron to melt the solder around the ground wire and kind of twist the pickup away from the ground wire. Easy to type, tricky to do in real life. Make sure you put your towels down on the top of the guitar so you don't accidentally drip solder or burn the top of your guitar with the soldering iron.

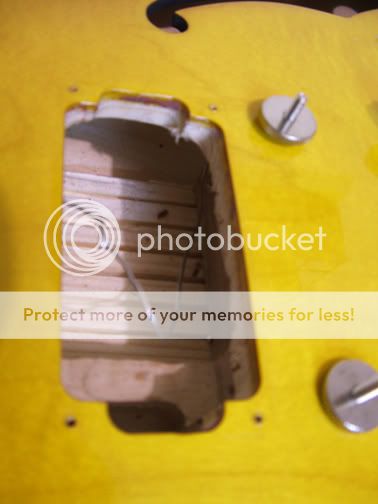

    [​IMG] [​IMG]



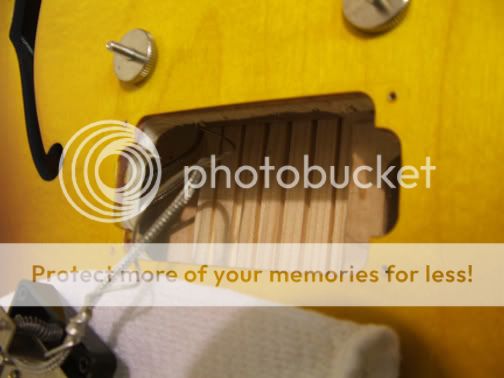

    Once I get the ground wire off the metal braid, I stuff it down to the bottom of the pickup route, and tape it down with masking tape:

    [​IMG]





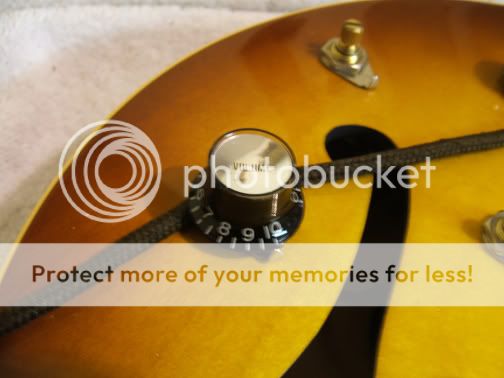

    Now, time to get the harness out. Grab your High-falutin', Hi-Tech, Roswell Knob Puller (a.k.a. the shoelace), get up under the knobs, wrap once around, and pull ^up^ while resting your thumb on top of the knob so you don't shoot it across the room, like so:

    [​IMG]


    Once you get the knobs off, loosen up the hex-nuts and the jack, and collect the nuts & washers and set them aside (don't lose them).

    It will take some manipulation, but you can gently manuever the whole harness out.

    You are now posed with a new dilemma: unsoldering the pickups from the Volume pots. "HA!...I can do that..." you say.:slash:

    Not so fast, Slash. Gibson uses some kind of Chernobyl Solder on there that will take some patience (and heat) to get it off where they ground the braided wires to the backs of their junky-ass pots. If you don't want to do this, just clip the pickup leads as close as you can to the point where they are grounded to the pots. You'll lose an inch of wire. Maybe this will matter later on... :hmm:

    If you've gotten this far, you can remove the Bridge pickup and set it aside. Don't lose it, you will need it later. :naughty: I like to leave the Neck pickup in the guitar--no real reason to remove it, but I tape its lead down with masking tape. Unless you are changing out your pickups, then go ahead on with taking it out.

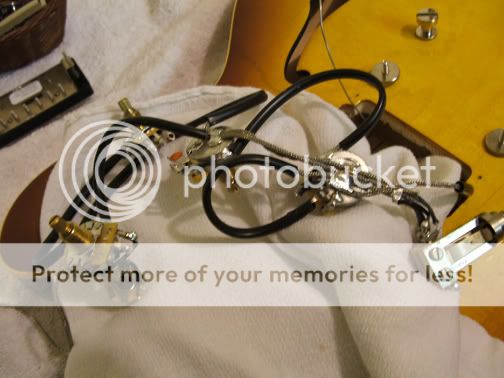

    So, now you got the harness out. What a mess this thing is:

    [​IMG]



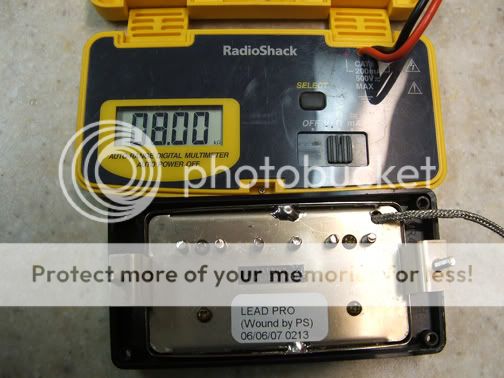

    I always like to see what kind of resistance the pickups have in the guitars I work on, and my buddy Steve's 335 is no exception. Gibson chose a pair of BurstBucker Pro's to go in this beastie:

    [​IMG] [​IMG]

    Note the dates of manufacture of the pickups... :hmm:





    got Tone?
    [​IMG]

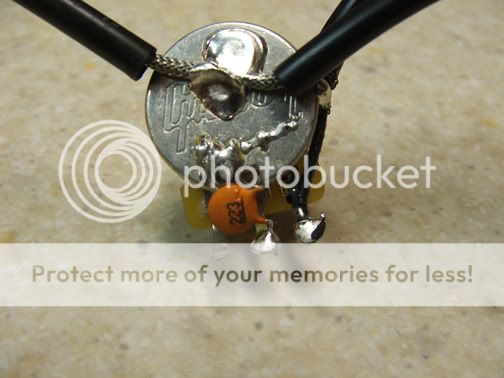

    That cap needs some Viagra&#8482; :lol:






    Part 2 follows...

  2. hillbilly

    hillbilly V.I.P. Member

    Messages:
    1,399
    Likes Received:
    270
    Joined:
    Jan 31, 2008
    Alright, so we got that old harness out of there, and we didn't burn the house down. Time to prepare...


    First, you've got your harness. Whether you bought it somewhere, or you made it yourself, please, please I beg you: test it before you install it. How? Hook your pickups up to it really quickly (i.e. "not permanently"), plug in a cable, and tap on the pickups, making sure the Switch, Volumes & Tones all work like they should. Take it from one who's found out the hard way, it sucks donkey balls having to install & then take out a 335 harness because it doesn't work, because something shorted out, or for whatever reason it's not working...

    For this reason, every pre-wired RS Guitarworks 335 harness is tested at the shop, by me, to make sure that the Switch, Volumes & Tones all work like they should.

    [​IMG]

    So, the harness works. It's time to make a decision:

    • Solder the pickups to the Volume pots...

    or


    • Solder leads to the Volume pots to extend the lengths up towards the Bridge pickup route.


    On my pre-wired 335 harnesses, I put "extention" leads on. Why? So that if someone feels "experimental", they won't have to spend all freakin' day just to change out some pickups...the leads are right there--just solder the pickup's leads onto the extentions from the Volume pots. Again, I learned this from experience...just trying to save some headaches.

    If you decide to solder the pickups directly to the Volume pots, make sure you ground them to the back of their respective Volume pot.

    Just to re-cap:

    1. You've tested the harness.
    2. You've got the pickups hooked up to the Volume Pots, and grounded to the back of the Volume pots.

    On to Part 3...
