A BW Build

BWGuitars · 02-12-2013, 11:47 PM

I've been waiting to start on this project for quite a while now, so I'm pretty giddy about getting the ball rolling finally! I thought, why not do a build thread for it, especially since its a probably a lot more in line with the "norm" around here (compared to the shreddy McShreddersons that I've been building non-stop for the past year).

It's a semi-hollow guitar that I'm building for my little brother and a new design that I've been working on for a while now. So I'm excited on a bunch of levels to get it started!

Anywho, here's some pictures of today's progress:

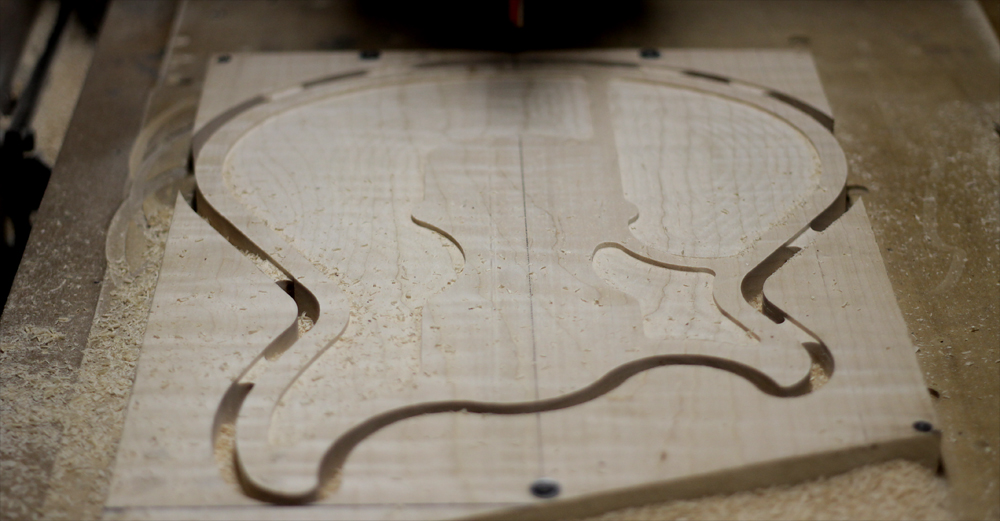

The guide outlines for the inner carve machined into the back of the top:

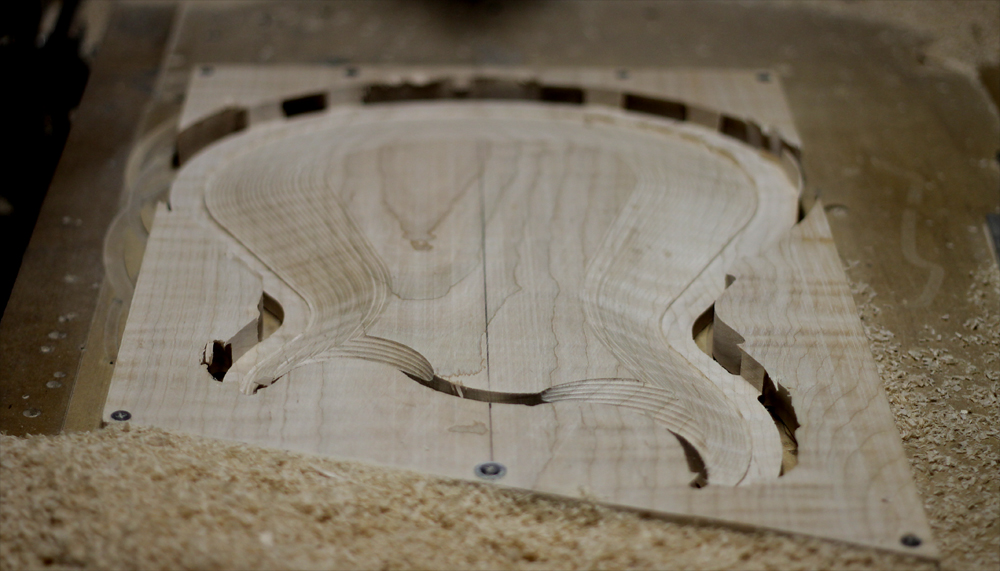

The rough top carve:

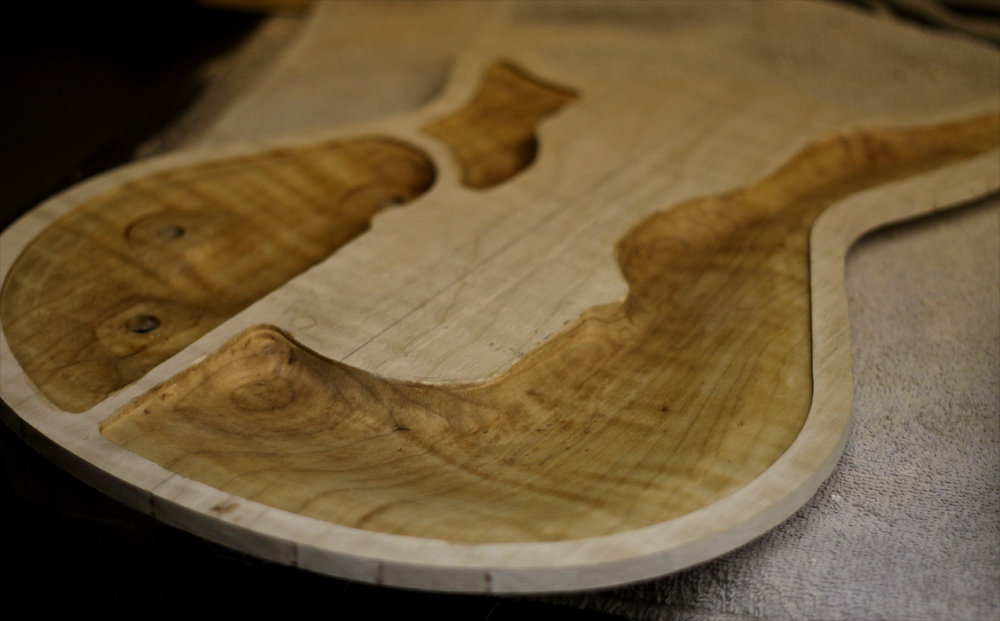

Inner carve done and oiled:

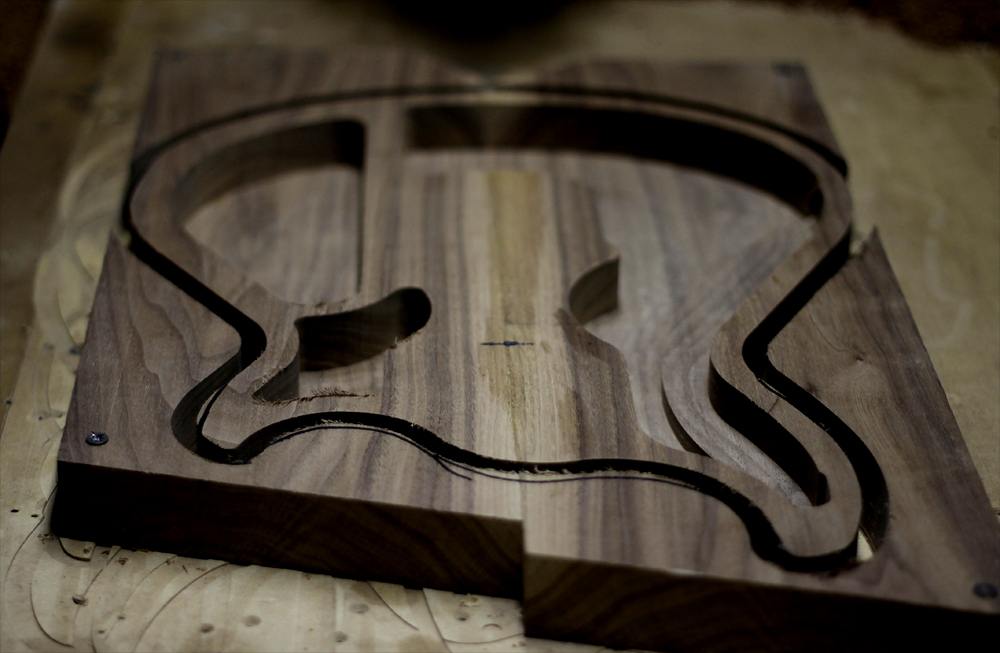

The body chambers routed out:

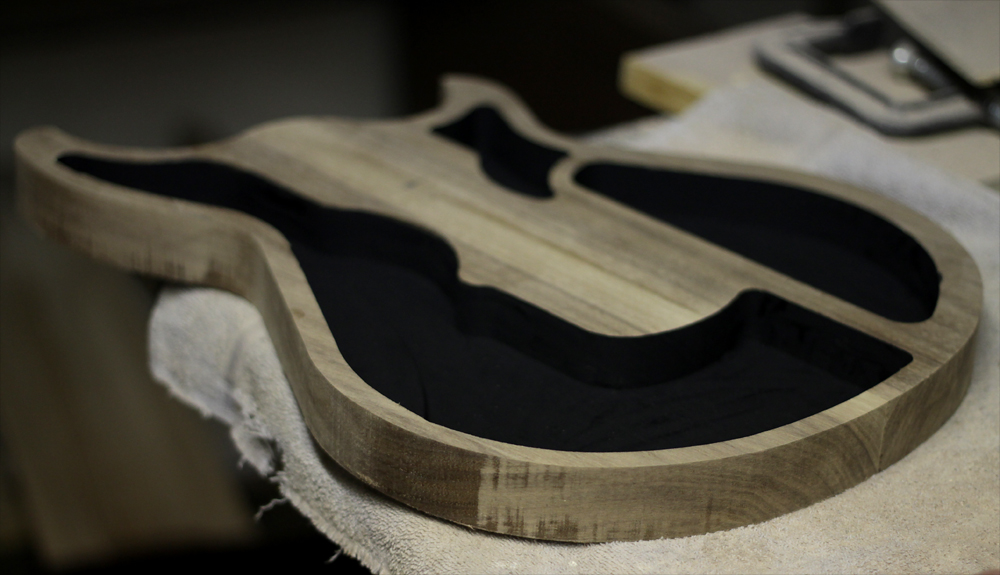

And then painted black:

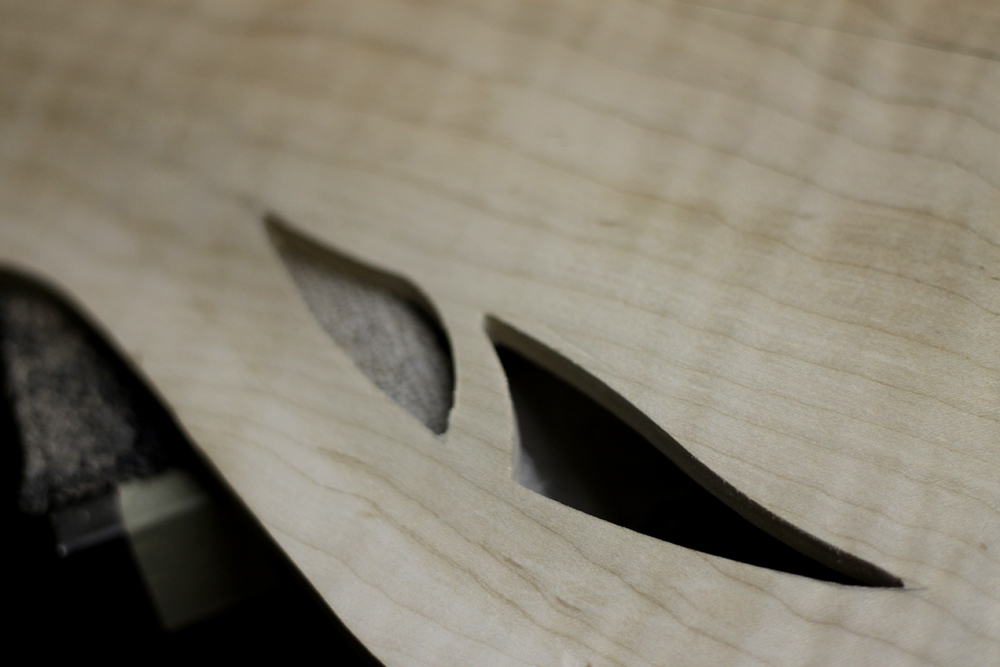

The F-hole, in the rough:

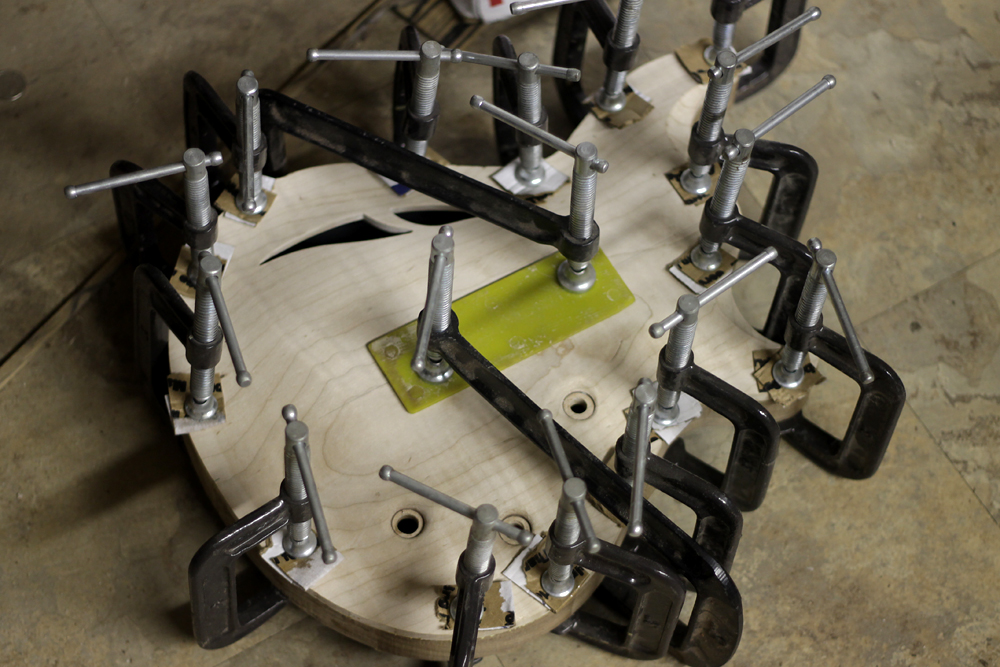

And all clamped up:

dougk · 02-13-2013, 12:08 AM

Sweet! Looking forward to seeing this one, I always enjoy your McShreddersons too

Roman · 02-13-2013, 01:52 AM

I like your work. Excellent designs, elegantly executed.

Knarbens · 02-13-2013, 02:35 AM

Really looking forward to this ... really nice top carve.
Btw ... I was browsing your page and came accross this:

Is this the bodyshape of this particular build also? I really like it!
I prefer it over the blackmachine style guitars (even though they look great).

confused · 02-13-2013, 02:47 AM

I always love your designs, I'm sure this one will be the same!

BWGuitars · 02-13-2013, 03:01 AM

Quote:

Originally Posted by dougk

Sweet! Looking forward to seeing this one, I always enjoy your McShreddersons too

Quote:

Originally Posted by Roman

I like your work. Excellent designs, elegantly executed.

Quote:

Originally Posted by confused

I always love your designs, I'm sure this one will be the same!

Thanks guys! Now I'm really going to have to deliver the goods

Quote:

Originally Posted by Knarbens

Really looking forward to this ... really nice top carve.
Btw ... I was browsing your page and came accross this:

Is this the bodyshape of this particular build also? I really like it!
I prefer it over the blackmachine style guitars (even though they look great).

That's actually the favorite of my designs, too, but this is a new one. Its kinda like a combination of a LP double cut and a PRS. I wanted to design something a bit more traditional. No offset lower bout and no pointy business going on.

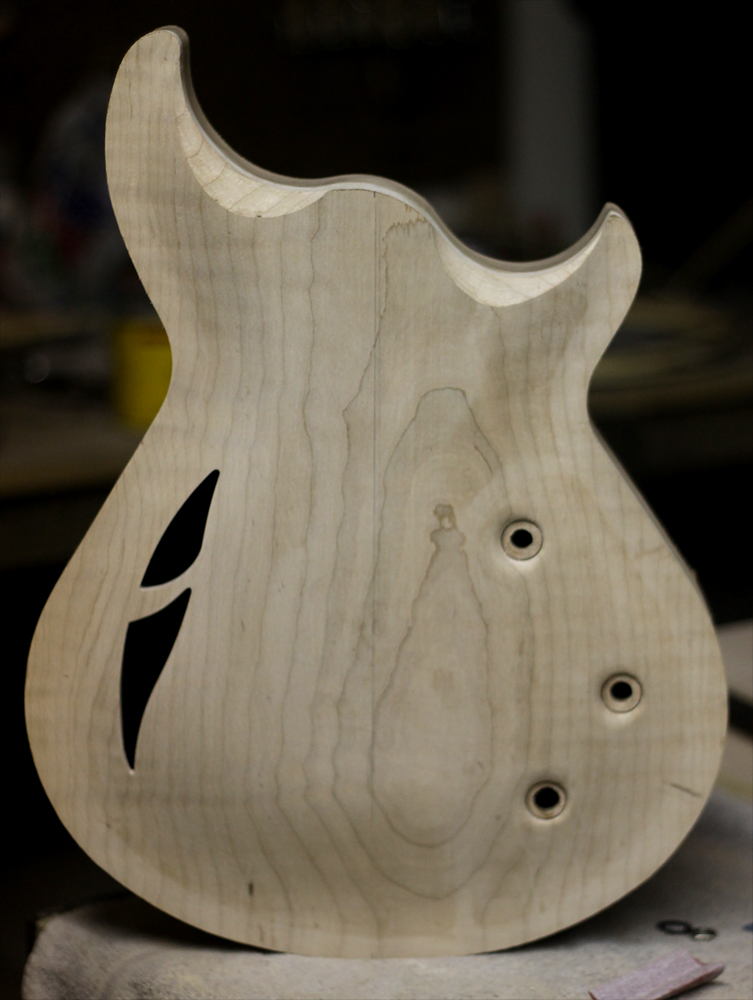

Here's a frontal to show off the overall outline:

And don't get me wrong, I love building those super strats, but I'm booked for the rest of the year doing commissioned DII builds, so this is a nice breath of fresh air

j.six · 02-13-2013, 09:53 AM

I love this. One of these days, I'm gonna hop in the car and head down there.

Kammo1 · 02-13-2013, 12:24 PM

Nice guitar bro and yes I do like the design alot, it's nice to see you step away from the BM style stuff

decoy205 · 02-13-2013, 12:51 PM

I really enjoy your work man. Very cool stuff!

BWGuitars · 02-13-2013, 10:19 PM

Quote:

Originally Posted by j.six

I love this. One of these days, I'm gonna hop in the car and head down there.

Anytime dude! Shop's always open (but not necessarily always tidy...

)

Quote:

Originally Posted by Kammo1

Nice guitar bro and yes I do like the design alot, it's nice to see you step away from the BM style stuff

Quote:

Originally Posted by decoy205

I really enjoy your work man. Very cool stuff!

Thanks guys!

Here's a couple more pictures of the neck blanking process:

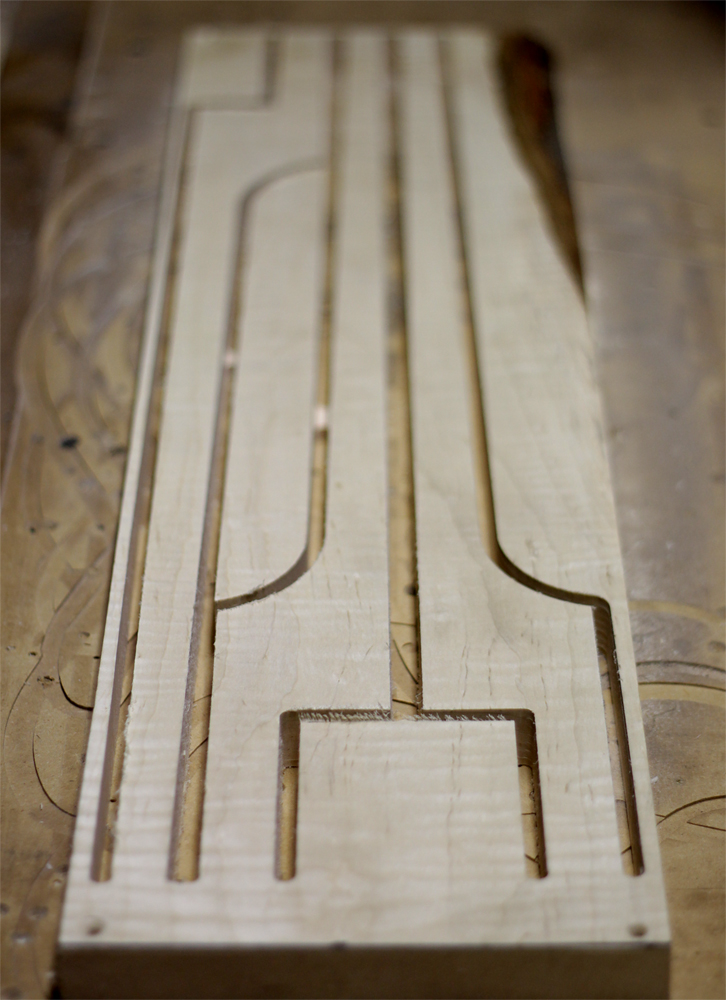

The individual maple laminates profiled out:

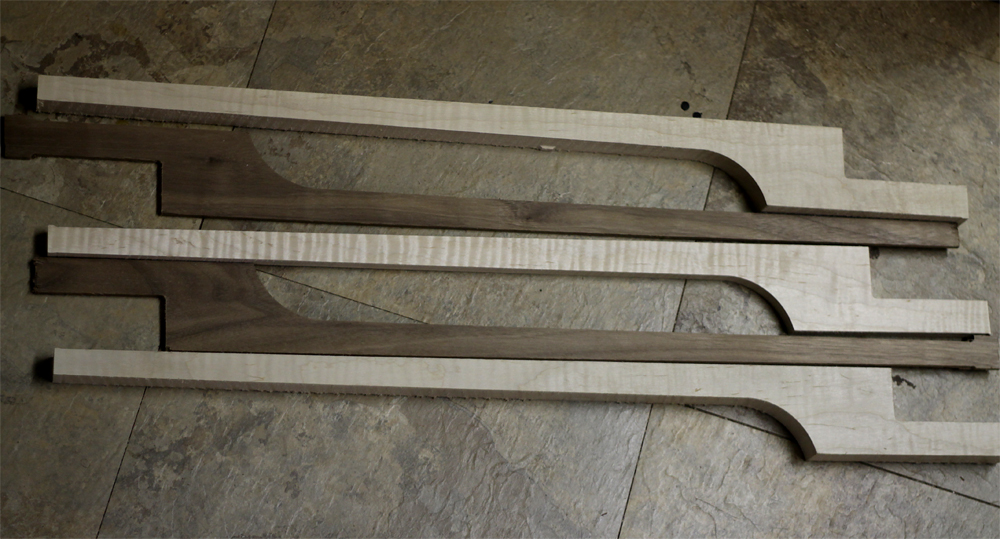

Cleaned up with the walnut pieces:

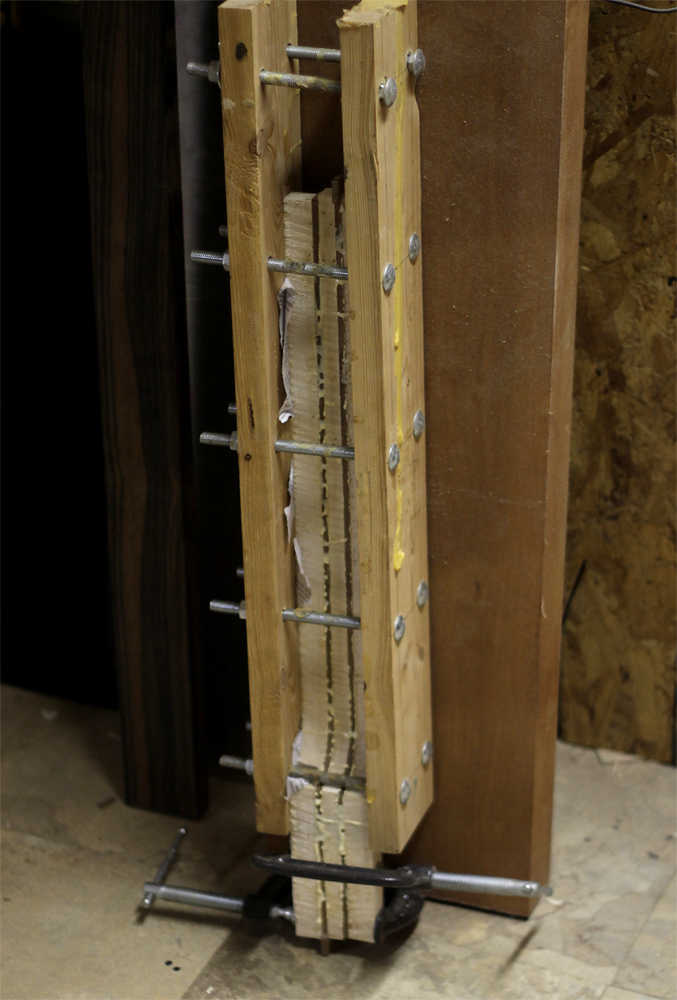

And all five slapped into the neck smasher, to be left for a couple days:

crazygtr · 02-14-2013, 10:18 PM

Any reason in particular for leaving the blank clamped for that long? ( looks like Titebond )

BWGuitars · 02-14-2013, 10:29 PM

Quote:

Originally Posted by crazygtr

Any reason in particular for leaving the blank clamped for that long? ( looks like Titebond )

Because I have some other stuff to do for a couple days

crazygtr · 02-14-2013, 10:54 PM

Quote:

Originally Posted by BWGuitars

Because I have some other stuff to do for a couple days

good reason

Knarbens · 02-15-2013, 01:37 AM

Really cool neck blanking process!

Aaron, allow me to ask where you put the strapbutton on the bottom end?

BWGuitars · 02-15-2013, 04:32 PM

Quote:

Originally Posted by Knarbens

Really cool neck blanking process!

Aaron, allow me to ask where you put the strapbutton on the bottom end?

The "rim" of the body at the tail is about 1/2" thick, which should be plenty to bear the strap button screw. If it feels flimsy at all, I'll epoxy in a threaded insert and use a machine screw

BWGuitars · 02-16-2013, 07:28 AM

Been in the shop all night and this is all I got accomplished...

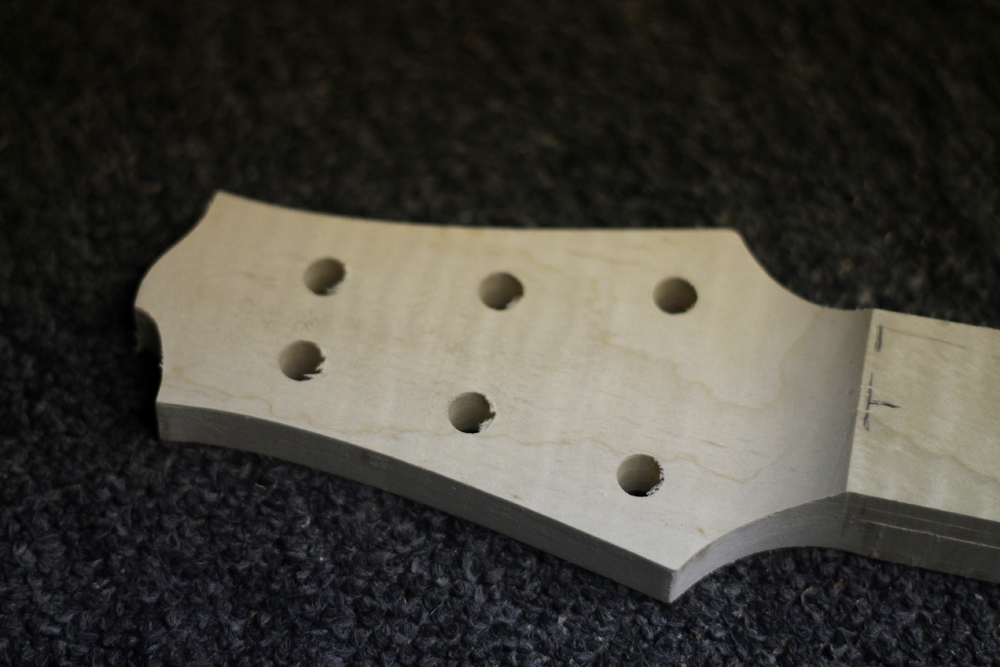

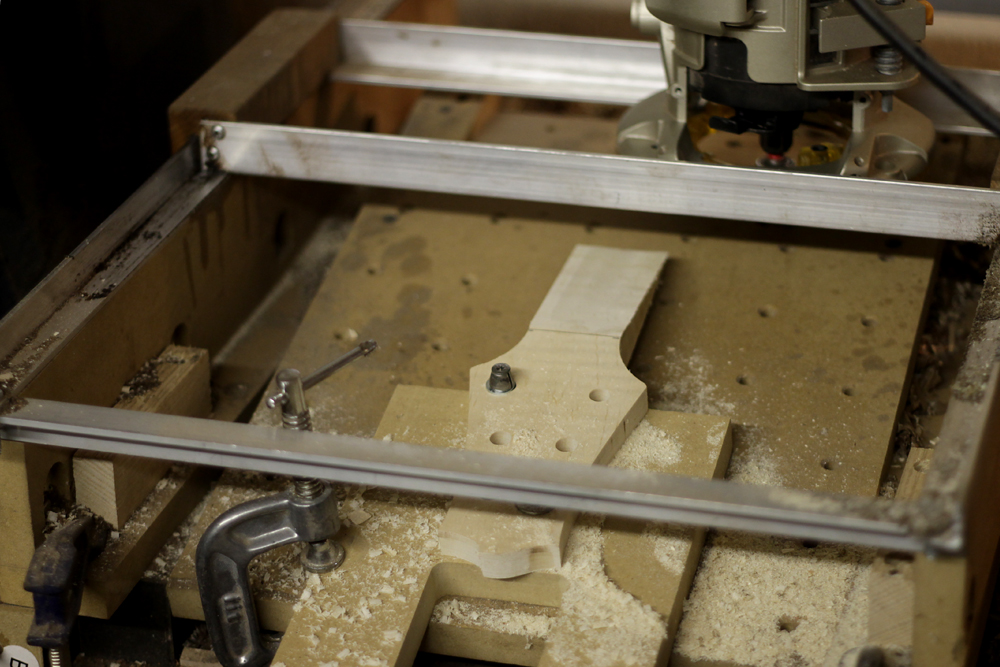

The headstock, roughed out:

Routing the 13° angle into the headstock for the scarf joint:

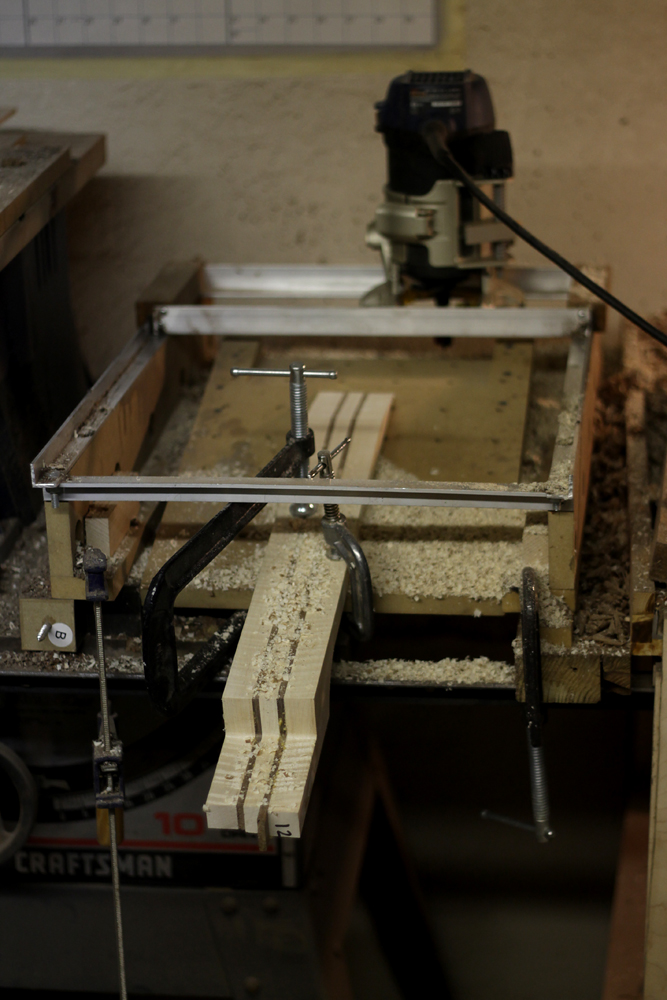

Routing the angle in the neck:

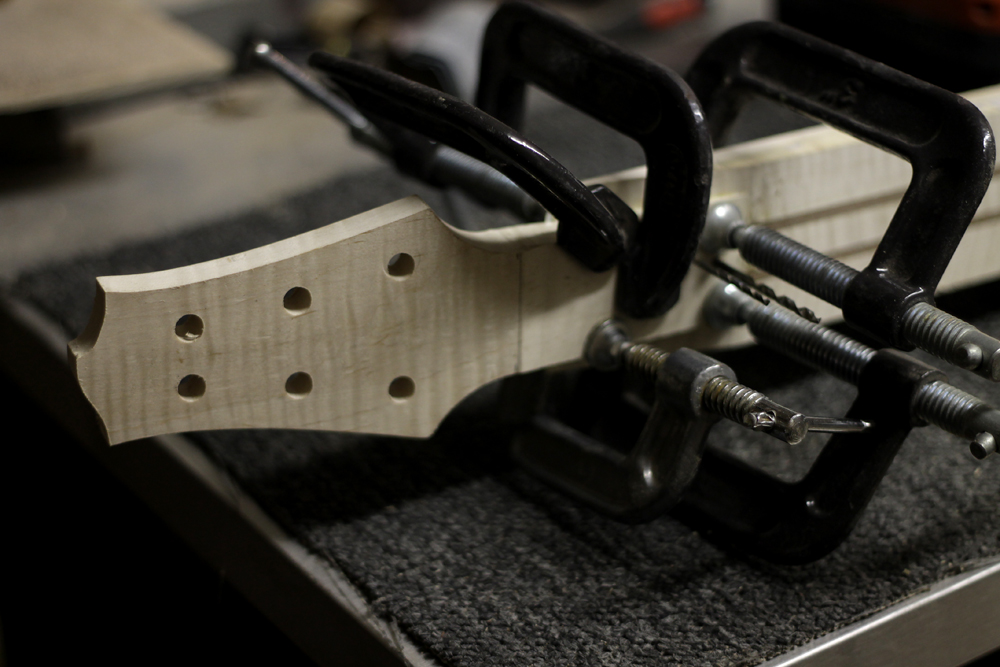

And clamped:

Knarbens · 02-16-2013, 07:32 AM

Really special way ... both the laminated and flame maple headstock combination and the jig.
Nice small headstock. Really looking forward to more progress.

szlash280z · 02-16-2013, 09:56 AM

you dang Cheaters with your CNC's!

NateM · 02-16-2013, 10:13 PM

Looks great so far!

Mind if I ask what program you use to model your guitars?

BWGuitars · 02-17-2013, 06:58 AM

Quote:

Originally Posted by szlash280z

you dang Cheaters with your CNC's!

Na na!

Quote:

Originally Posted by NateM

Looks great so far!

Mind if I ask what program you use to model your guitars?

2D CAD into my CAM software... I'm too dumb to do real 3d modeling.

BWGuitars · 02-17-2013, 06:59 AM

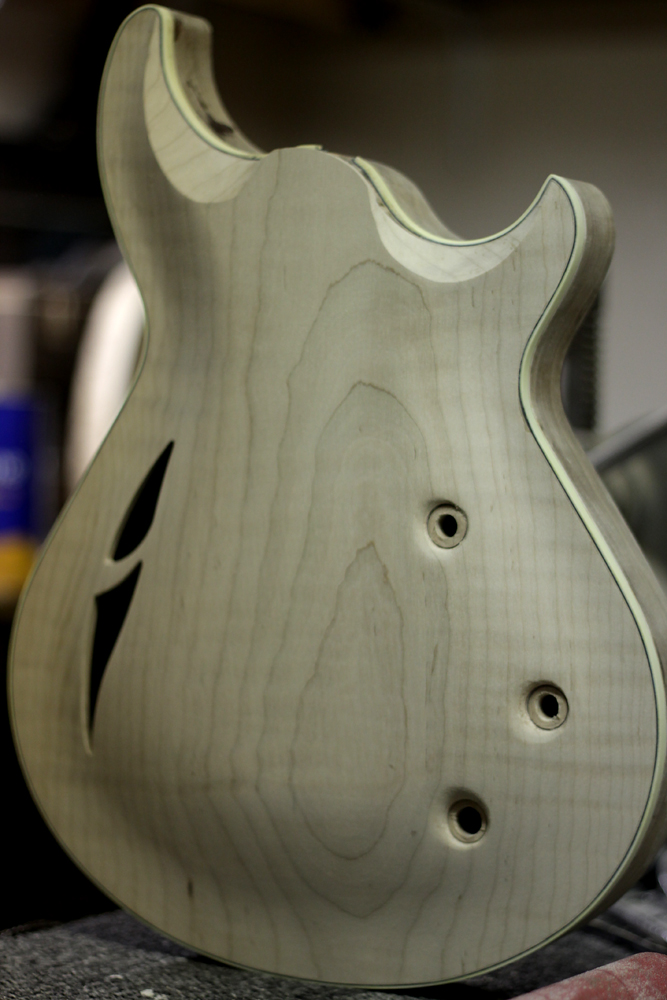

And bound:

BWGuitars · 02-17-2013, 09:31 AM

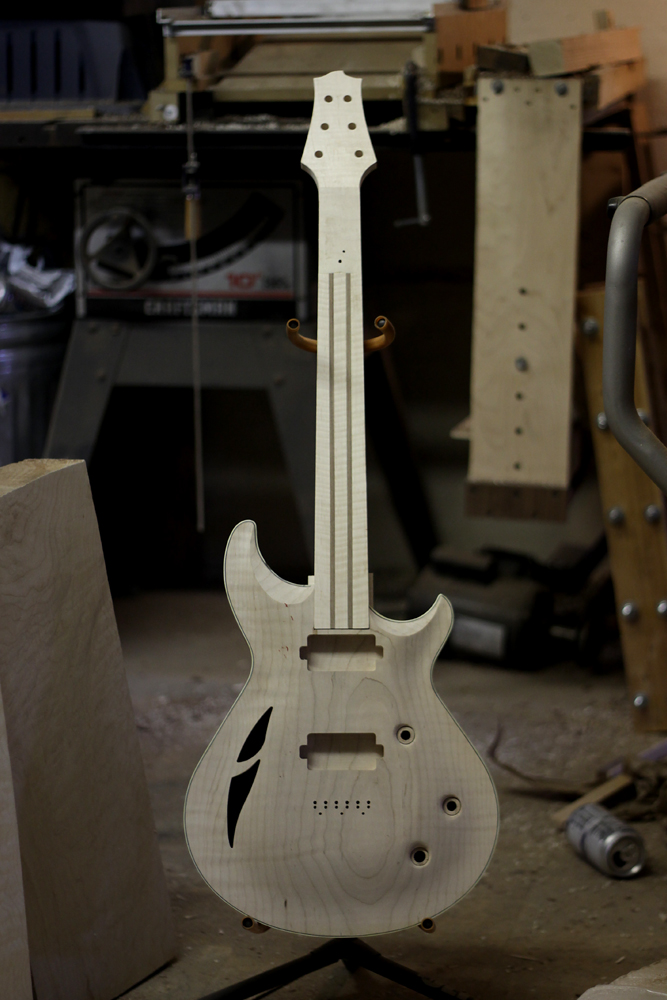

I still have to do some final work on the neck joint fit, but the bulk of the routing is done! Woo!

nuance97 · 02-17-2013, 09:34 AM

That thing is dead sexy!

Helderik · 02-17-2013, 01:47 PM

Wooow, what an awesome design!

I am definitely looking forward to seeing it finished!

Erik

flashbak · 02-17-2013, 01:54 PM

I like!

66 galaxie · 02-17-2013, 02:02 PM

Nice work

If I may ask a question on your jig for the scarf joint angles.
The one set of rails goes up and down the angled jig and the router slides back and forth on its own rails?
Sorry if I didnt word that correctly.

j.six · 02-17-2013, 04:36 PM

Love it. What's the bridge? There's a lot of holes, there.

BWGuitars · 02-17-2013, 05:05 PM

Quote:

Originally Posted by 66 galaxie

Nice work

If I may ask a question on your jig for the scarf joint angles.
The one set of rails goes up and down the angled jig and the router slides back and forth on its own rails?
Sorry if I didnt word that correctly.

You got it. It offers basic 2-axis movement, and the platform is fixed at 13°. Really basic. The coolest part is that its wide enough to do my multi-scale necks as well (just angle the neck as needed when clamping it down for a nice compound scarf joint angle).

Quote:

Originally Posted by j.six

Love it. What's the bridge? There's a lot of holes, there.

It's getting a right-handed, straight-scale version of this bridge:

j.six · 02-17-2013, 05:20 PM

Nice.

BWGuitars · 03-10-2013, 09:35 PM

Not a lot of progress on this build, but I did manage to cut out a headstock overlay:
